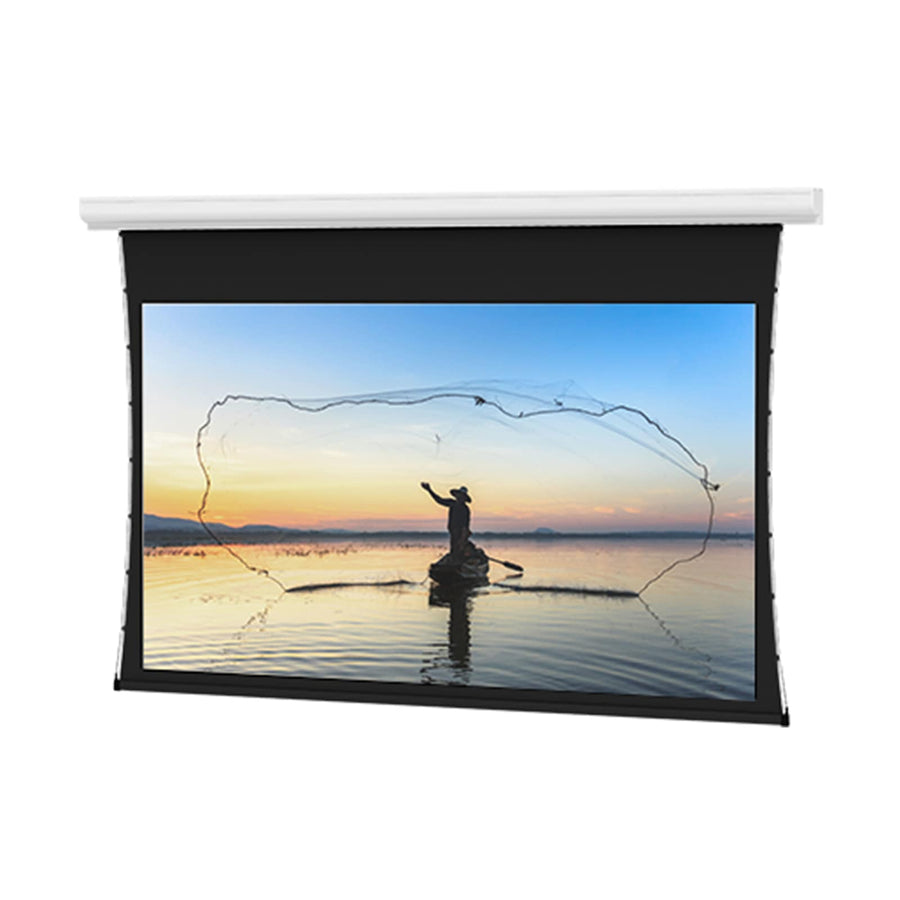

Da-Lite Tensioned Designer Contour Electrol, 54" x 96" with Da-Mat - 14538
Tensioned motorized projection screen with Da-Mat surface, 54" x 96" size, and integrated lithium-ion battery motor
The Da-Lite 14538 is a Tensioned Designer Contour Electrol screen providing a motorized projection solution without the need for hardwired electrical installation. This 54" x 96" unit features a 110 in (279.4 cm) diagonal screen format in 16:9 HDTV aspect ratio. It is equipped with a standard Agility Battery Motor utilizing lithium-ion technology, which provides over 200 cycles on a single charge. This screen is suitable for front projection applications and is TAA compliant. The housing has a slim profile, measuring 4 5/8” high and 4 3/32” deep, finished in a standard white powder-coated aluminum. For installations in historic buildings or locations where running new electrical conduit is not feasible, the built-in battery system allows for immediate operation out of the box. This model includes a Da-Mat surface with standard resolution capabilities and features a black backing to help retain projected brightness.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 110 in (279.4 cm) |
| Screen Height | 54 in (137.2 cm) |
| Shipping Weight | 58.25 lbs (26.4 kg) |
| Size | 54" x 96" or 110" diagonal |
| Application | CeilingWall |
| Built-In Control | Battery |
| Federal Ops Country of Origin | US |
| Motor | Agility Battery Motor (Lithium-Ion) |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
How many times can I use the screen on a single battery charge?
The Agility Battery Motor provides over 200 cycles per single charge via its lithium-ion battery.
What is required to keep the battery charged for continuous use?
You can use the Da-Lite 14856 PoE 5V Micro USB Adapter to keep the battery charged between uses or for maintenance-free operation.
Can I control the screen using a mobile device or third-party system?
Yes, by using the Da-Lite 14701 WiFi Bridge, you can control the screen via a mobile app or integrate it with a third-party device.
Will this screen work in an environment where I cannot run new wiring?
Yes, the Agility Battery Motor is designed for wire-free installation, making it ideal for retrofitting historic buildings where electrical wiring is difficult.
Is there a different version of this screen available for 16:10 formats?
The Tensioned Designer Contour Electrol series also offers 113" diagonal versions in a 16:10 Wide format.
