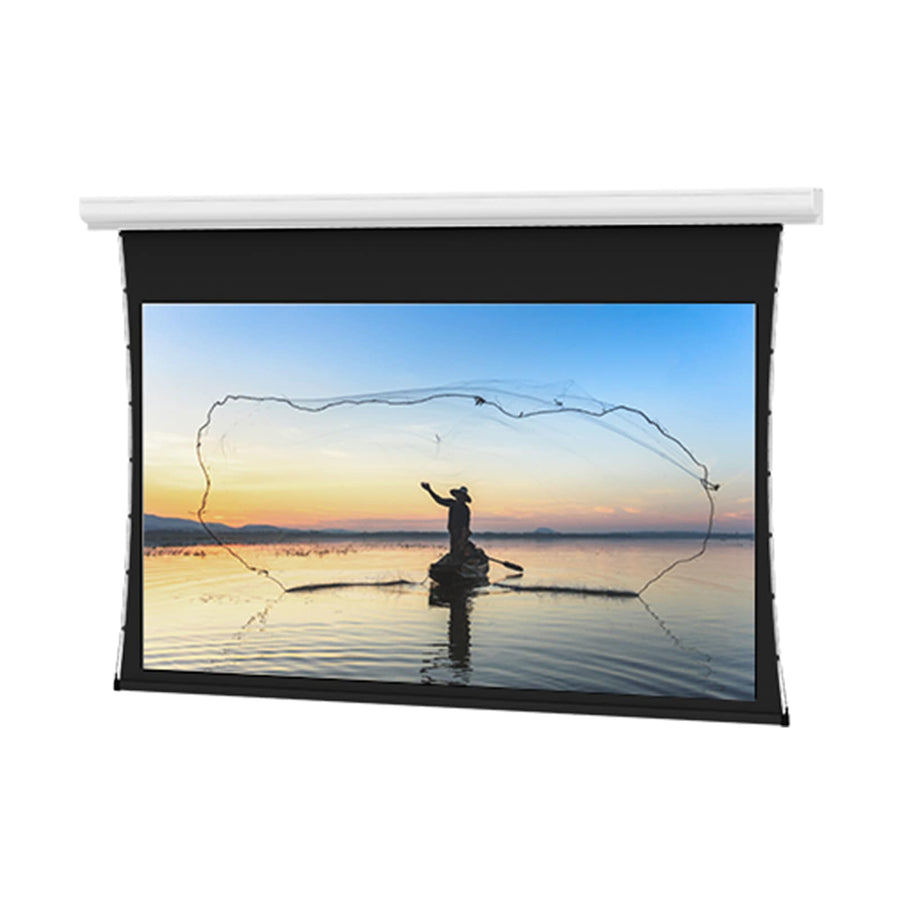

Da-Lite Tensioned Designer Contour Electrol, 52" x 92" with Da-Mat - 14532
Tensioned 52" x 92" electric screen with Da-Mat surface, featuring a battery-operated Agility motor for wireless installation
The Da-Lite 14532 is a Tensioned Designer Contour Electrol electric screen designed for flexible installation in both ceiling and wall applications. This 52" x 92" unit (106" diagonal) features the Da-Mat surface, optimized for standard resolution front projection in a 16:9 HDTV format. It utilizes the Agility Battery Motor with a lithium-ion battery, which can achieve over 200 cycles on a single charge via a micro USB port. This battery-driven system eliminates the need for immediate electrical wiring during installation, making it an ideal retrofit option for historic buildings or environments where running new conduit is prohibitive. The screen features a white powder-coated aluminum housing that is 4 5/8” high and 4 3/32” deep. For continuous operation without manual charging, the Da-Lite 14856 PoE 5V micro USB adapter can be used to maintain the battery charge. This TAA compliant screen also supports wireless control via a WiFi Bridge, accessory part number 14701, allowing for mobile app integration and third-party device control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 106 in (269.2 cm) |
| Screen Height | 52 in (132.1 cm) |
| Shipping Weight | 56 lbs (25.4 kg) |
| Size | 52" x 92" or 106" diagonal |
| Application | CeilingWall |
| Built-In Control | Battery |
| Federal Ops Country of Origin | US |
| Motor | Agility Battery Motor (Lithium-Ion) |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen fit my 16:9 display setup?
Yes, this SKU is specifically configured for a 52" x 92" area, which provides a 106" diagonal in a 16:9 HDTV format.
Do I need an electrician to install this motorized screen?
Not necessarily. The integrated Agility Battery Motor allows for a wire-free installation, making it an ideal solution for retrofitting historic spaces where electrical wiring is difficult.
How do I charge the Agility Battery Motor?
The motor is charged via a micro USB port. For maintenance-free operation, you can use the Da-Lite 14856 PoE 5V micro USB adapter to keep the battery charged between uses.
Can I control this screen using a mobile app?
Yes, by using the Da-Lite 14701 WiFi Bridge, you can connect the screen to a mobile app for control and to monitor battery life.
What mounting options are available for the 14532?
The Tensioned Designer Contour Electrol series is designed for both ceiling and wall mounting applications.
