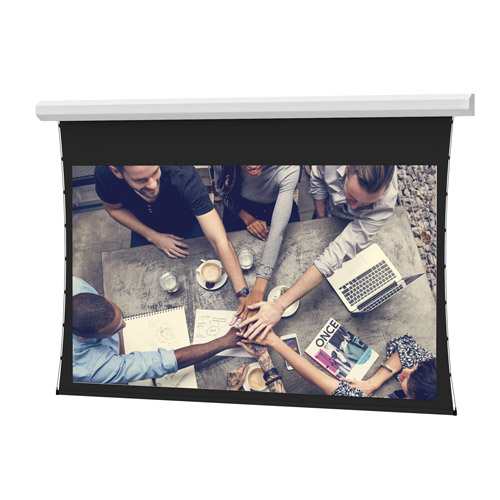

Da-Lite Tensioned Cosmopolitan Series, 92" x 164" with Da-Tex - 97981
Rear projection screen with Da-Tex surface, 92" x 164" dimensions and 188" diagonal
The Da-Lite 97981 is a 92" x 164" electric rear projection screen from the Tensioned Cosmopolitan Series, featuring a 188" diagonal. This large venue screen utilizes a Da-Tex surface designed for standard resolution rear projection applications. It is engineered for both ceiling and wall mounting. This specific SKU features a white powder-coated housing finish, though a black finish is available upon request. The unit utilizes Smooth Roll Technology and the TruGuide™ Electric Screen Tensioning System to ensure a perfectly flat and smooth viewing surface. This model operates on a standard 120V (60Hz) motor and is TAA compliant. For installers managing submittals, the Tensioned Cosmopolitan Specification Sheet is available in the resources section. Note that this product is scheduled to be discontinued on 10/30/26, with DL100155L or DL100107L identified as the direct replacement options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 195" x 13" x 20" (4953 x 330.2 x 508 mm) |
| Screen Diagonal | 188 in (477.5 cm) |
| Screen Height | 92 in (233.7 cm) |
| Shipping Weight | 418 lbs (189.6 kg) |
| Size | 92" x 164" or 188" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 97981 work for rear projection?
Yes, this model features a Da-Tex surface specifically designed for rear projection applications.
What are the mounting options for the 97981?
This Cosmopolitan Series screen is designed for both ceiling and wall mounting applications.
Does this screen include a tensioning system?
Yes, it utilizes the TruGuide™ Electric Screen Tensioning System to provide an optimal viewing surface smoothness.
Is the 97981 TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
What is the direct replacement for this discontinued model?
The manufacturer identifies DL100155L or DL100107L as the direct replacement options for this series.
