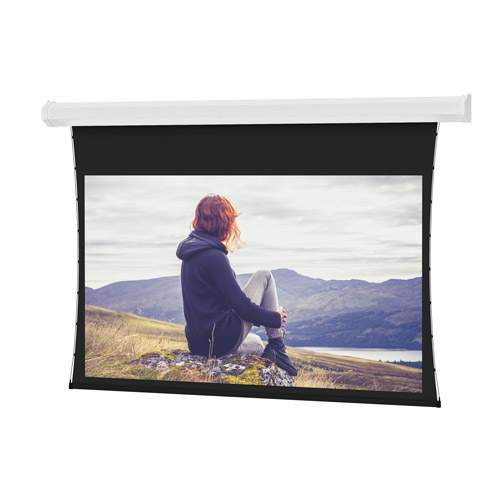

Da-Lite Tensioned Cosmopolitan Series, 87" x 139" with Da-Mat - 34502E
87" x 139" electric projection screen with Da-Mat surface, 164" diagonal, and 220V motor for ceiling or wall mounting
The Da-Lite 34502E is an electric Tensioned Cosmopolitan Series screen designed for large venue front projection applications. This 164" diagonal model features a screen height of 87" and a width of 139", providing a wide 16:10 screen format. It is equipped with a Da-Mat surface characterized by standard resolution and includes a black backing to retain projected brightness. This specific SKU is configured with a 220V (50Hz) motor intended for export use. The unit is housed in a single-piece steel case with integrated mounting holes in the end caps to facilitate installation. For optimal viewing, the TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology are used to maintain a perfectly flat and seamless surface. This TAA compliant screen is suitable for both ceiling and wall mounting applications in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 164 in (416.6 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Dimensions | 168" x 13" x 10" (426.7 x 33 x 25.4 cm) |
| Shipping Weight | 130 lbs (59 kg) |
| Size | 87" x 139" or 164" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068023673 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Ceiling Trim Kit - 96384
96384$332.80
Da-Lite Single Motor Low Voltage Control System 220 Volt
40973E$316.00
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Replacement Wall Switch White 220V
80575E$71.20
Questions about this part
Will this screen fit my 16:10 projection setup?
Yes, the 34502E features a wide 16:10 screen format with a screen height of 87" and a width of 139".
What mounting options are available for the 34502E?
This model is designed for both ceiling and wall applications, utilizing a single-piece steel case.
What is the voltage requirement for this specific model?
This SKU is built for export and utilizes a 220V (50Hz) motor.
What additional accessories are compatible with this Cosmopolitan screen?
You can add a Da-Lite Ceiling Trim Kit (96384) or a Single Motor Low Voltage Control System (40973E) for enhanced control.
What documentation is available for submittals?
Technical details can be found in the Tensioned Cosmopolitan Specification Sheet or the Instruction Manuals available in the resources section.
