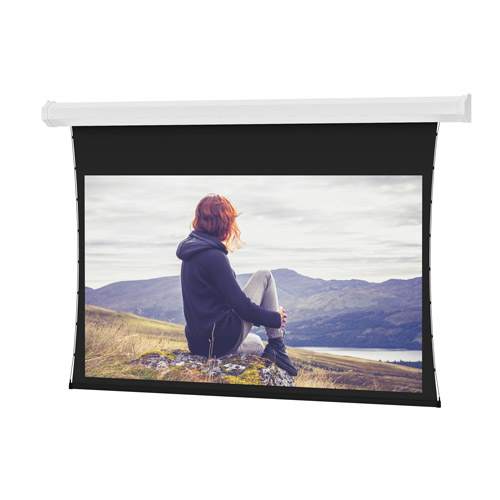

Da-Lite Tensioned Cosmopolitan Series, 87" x 116" with Da-Mat - 76730
Large venue electric tensioned screen, 150" diagonal with Da-Mat surface for front projection applications
The Da-Lite 76730 is a Tensioned Cosmopolitan Series electric screen designed for large venue applications. This 150 inch (381 cm) diagonal screen features a 87 inch (221 cm) height and a 116 inch width, utilizing a Da-Mat surface optimized for front projection. It is engineered with Smooth Roll Technology to maintain a perfectly flat viewing area and includes the TruGuide™ Electric Screen Tensioning System to ensure optimal surface smoothness. This model is housed in a single-piece steel case with integrated mounting holes in the end caps, suitable for both ceiling and wall mounting. The unit operates on a standard 120V (60Hz) motor and features a standard black backing to retain projected brightness. This TAA compliant solution is manufactured in the US and includes a decora-style, three-position wall switch for manual operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 150" x 13" x 10" (3810 x 330.2 x 254 mm) |
| Screen Diagonal | 150 in (381 cm) |
| Screen Height | 87 in (221 cm) |
| Shipping Weight | 118 lbs (53.5 kg) |
| Size | 87" x 116" or 150" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Single Motor Low Voltage Control System 120 Volt
40973$316.00
Da-Lite Replacement Wall Switch Stainless Steel
92055$95.20
Da-Lite Replacement Wall Switch White (standard)
80575$71.20
Key Operated 110 Volt Switch
74490$116.00
Questions about this part
Will the Da-Lite 76730 fit my projection setup?
This is a front projection screen with a 4:3 video format and a Da-Mat surface, providing a 150 inch diagonal viewing area.
What mounting options are available for the 76730?
The single-piece steel case allows for both ceiling and wall mounting applications.
What accessories are compatible with the Cosmopolitan Series?
You can add accessories like the Da-Lite Floating Mounting Bracket (77027 or 77028), a Ceiling Trim Kit (96383), or the Single Motor Low Voltage Control System (40973).
Is this screen TAA compliant?
Yes, the Da-Lite 76730 is TAA compliant and is manufactured in the United States.
How do I control the screen movement?
This model comes with a standard decora-style, three-position wall switch for manual control.
