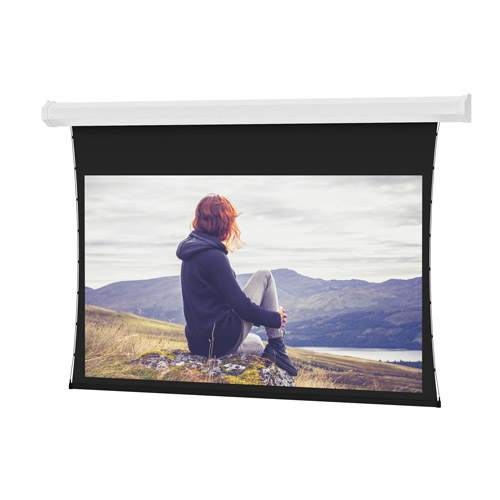

Da-Lite Tensioned Cosmopolitan Series, 69" x 92" with Da-Mat - 76016
Electric 120" diagonal tensioned screen with Da-Mat surface for front projection, suitable for ceiling or wall mounting
The Da-Lite 76016 is a Tensioned Cosmopolitan Series electric screen designed for large venue front projection applications. This 120 in (304.8 cm) diagonal screen features a Da-Mat surface and a 69 in (175.3 cm) screen height, providing a 4:3 video screen format. It utilizes Smooth Roll Technology to maintain a perfectly flat surface, complemented by the TruGuide™ Electric Screen Tensioning System for optimal smoothness. The single-piece steel case includes integrated mounting holes in the end caps for installation on sizes up to 12’ wide. It is powered by a standard 120V (60Hz) motor and includes a Decora-style, three-position wall switch. For installation, this unit can be used in either ceiling or wall applications. This model is TAA compliant and features a standard white powder-coated housing finish and a black backing to retain projected brightness.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 123" x 13" x 10" (3124.2 x 330.2 x 254 mm) |
| Screen Diagonal | 120 in (304.8 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Weight | 96 lbs (43.5 kg) |
| Size | 69" x 92" or 120" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Single Motor Low Voltage Control System 120 Volt
40973$316.00
Da-Lite Replacement Wall Switch Stainless Steel
92055$95.20
Da-Lite Replacement Wall Switch White (standard)
80575$71.20
Key Operated 110 Volt Switch
74490$116.00
Questions about this part
Will the Da-Lite 76016 work for front projection?
Yes, the 76016 is a front projection screen featuring a Da-Mat surface and black backing to retain projected brightness.
Can I mount the 76016 on a ceiling?
This series is designed for both ceiling and wall mounting applications.
What motor and power requirements does the 76016 have?
The screen operates on a standard 120V (60Hz) motor and includes a Decora-style, three-position wall switch.
What accessories are compatible with the Tensioned Cosmopolitan series?
Available accessories include the Da-Lite Floating Mounting Bracket (SKU 77027 or 77028), Ceiling Trim Kit (96382), and various replacement wall switches or locking cover plates.
Is the Da-Lite 76016 TAA compliant?
Yes, this product is TAA compliant.
