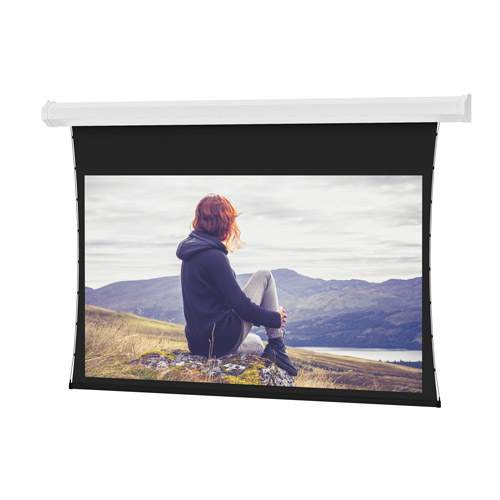

Da-Lite Tensioned Cosmopolitan Series, 69" x 110" with Da-Mat - 34492S
Electric front projection screen with Da-Mat surface, measuring 69" x 110" for ceiling or wall mounting in large venues
The Da-Lite 34492S is a 69" x 110" (130" diagonal) electric screen from the Tensioned Cosmopolitan Series, designed for large venue front projection. This model features the Da-Mat surface, which utilizes a standard resolution finish and a standard black backing to retain projected brightness. It is equipped with a silent 120V (60Hz) motor for quiet operation during deployment. This specific SKU is part of the Tensioned Cosmopolitan Series, which utilizes a single-piece steel case with integrated mounting holes in the end caps for sizes up to 12’ wide. The screen utilizes TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology to ensure a perfectly flat, seamless viewing surface. This unit is TAA compliant and is suitable for both ceiling and wall mounting applications. For higher-end surfaces like HD Progressive or Parallax, Da-Lite offers different configurations on larger 188" diagonal models or the Tensioned Contour series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 130 in (330.2 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Dimensions | 141" x 13" x 10" (358.1 x 33 x 25.4 cm) |
| Shipping Weight | 105 lbs (47.6 kg) |
| Size | 69" x 110" or 130" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Silent 120V (60Hz) |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068100220 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Single Motor Low Voltage Control System 120 Volt
40973$316.00
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Replacement Wall Switch Stainless Steel
92055$95.20
Da-Lite Replacement Wall Switch White (standard)
80575$71.20
Key Operated 110 Volt Switch
74490$116.00
Questions about this part
Is the Da-Lite 34492S TAA compliant?
Yes, this model is TAA compliant, meeting specific requirements for federal operations.
What mounting options are available for the 34492S?
This screen is designed for both ceiling and wall mounting applications in large venue environments.
What accessories are compatible with this screen?
You can add a Da-Lite Single Motor Low Voltage Control System (SKU 40973), a ceiling trim kit (SKU 96383), or various replacement wall switches (SKUs 92055, 80575, or 74490).
What is the difference between this screen and HD Progressive models?
This model uses the Da-Mat surface; HD Progressive and Parallax surfaces are available on Tensioned Cosmopolitan models with a diagonal of 188" or larger.
Does this screen require specialized tools for installation?
Refer to the Tensioned Cosmopolitan Instructions (PDF) for a complete list of tools required for wall or ceiling mounting.
