Da-Lite Tensioned Cosmopolitan Series, 65" x 116" with Da-Tex - 84999E
Rear projection tensioned screen, 65" x 116" (133" diagonal), featuring Da-Tex surface and 220V export motor

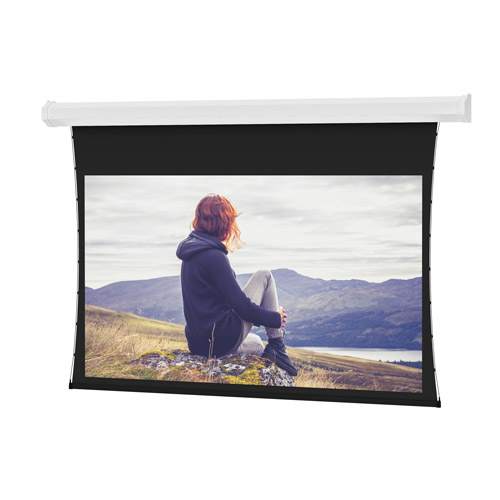

The Da-Lite 84999E is a Tensioned Cosmopolitan Series electric screen designed for large venue applications. This rear projection screen features a 65" x 116" (133" diagonal) dimension and utilizes the Da-Tex surface to provide standard resolution for high-quality imagery. It is configured with a 220V (50Hz) motor specifically for export markets. This model is TAA compliant and manufactured in the US. The series utilizes Smooth Roll Technology to maintain a perfectly flat screen surface during use, while the integrated TruGuide™ Electric Screen Tensioning System ensures optimal surface smoothness. The housing features a standard white powder-coated finish and includes a single-piece steel case with integrated mounting holes in the end caps for efficient installation on sizes up to 12’ wide. A standard black backing is included to retain projected brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 133 in (337.8 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Dimensions | 147" x 13" x 10" (373.4 x 33 x 25.4 cm) |
| Shipping Weight | 110 lbs (49.9 kg) |
| Size | 65" x 116" or 133" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068614192 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Single Motor Low Voltage Control System 220 Volt
40973E$316.00
Da-Lite Replacement Wall Switch White 220V
80575E$71.20
Questions about this part
Is this screen compatible with rear projection?
Yes, the 84999E is specifically designed for rear projection using a Da-Tex surface and includes a black backing to maximize brightness.
What voltage does the motor on this 84999E model require?
This specific SKU features a 220V (50Hz) motor intended for export applications.
Can I mount the 84999E on a wall or the ceiling?
This model is designed for both ceiling and wall applications, featuring a single-piece steel case with integrated mounting holes.
What accessories are compatible with the 84999E?
Compatible accessories include Da-Lite Floating Mounting Brackets (77027, 77028), Ceiling Trim Kits (96383), and Locking Switch Cover Plates (98837).
Which technical documents are available for the 84999E?
Installers can access the Tensioned Cosmopolitan Instruction Manual, Parts List, and Specification Sheets via the product resources.
