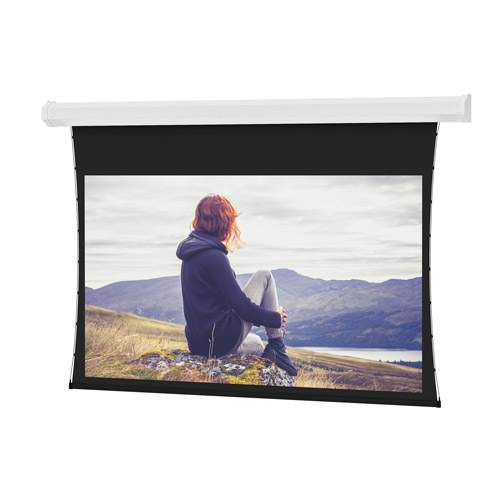

Da-Lite Tensioned Cosmopolitan Series, 65" x 104" with Da-Tex - 20890E
65" x 104" Rear projection screen with Da-Tex surface, 123" diagonal, and 220V motor for ceiling or wall installation
The Da-Lite 20890E is a 65" x 104" (123" diagonal) Tensioned Cosmopolitan Series screen designed for large venue applications. This electric screen features the Da-Tex surface, which is optimized for rear projection. It is configured with a 220V (50Hz) motor intended for export markets. The housing is a single-piece steel case with integrated mounting holes in the end caps, as this model is under 12’ wide. This specific SKU includes a Decora-style, three-position wall switch. For installation, it can be ceiling or wall mounted. To ensure a perfectly flat viewing area, the screen utilizes Smooth Roll Technology and the TruGuide™ Electric Screen Tensioning System. The screen surface is seamless and includes a standard black backing to help retain projected brightness on front projection surfaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 134" x 13" x 10" (3403.6 x 330.2 x 254 mm) |
| Screen Diagonal | 123 in (312.4 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Weight | 102 lbs (46.3 kg) |
| Size | 65" x 104" or 123" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Single Motor Low Voltage Control System 220 Volt
40973E$316.00
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Replacement Wall Switch White 220V
80575E$71.20
Questions about this part
Is this screen suitable for rear or front projection?
The 20890E is specifically configured for rear projection with a Da-Tex surface. It also features a standard black backing to maintain brightness if used for front projection.
What mounting options are available for the 20890E?
This model can be installed using either ceiling or wall mount applications. The single-piece steel case features integrated mounting holes in the end caps.
What accessories are compatible with this series?
You can enhance the installation with Da-Lite components such as the 77027 or 77028 Floating Mounting Brackets, a ceiling trim kit (96383), or a single motor low voltage control system (40973E).
What is the electrical requirement for this screen?
This SKU is equipped with a 220V (50Hz) motor, which is intended for use in export markets rather than standard US 110/120V applications.
Which documents are available for submittals?
Installers can access the Tensioned Cosmopolitan Specification Sheet, CAD models, BIM models, and the official instruction manual through the Resources tab.
