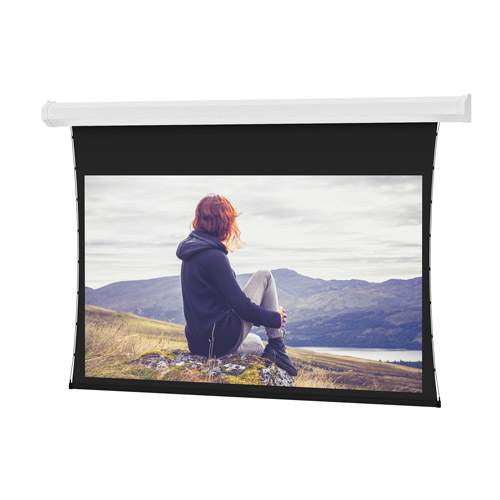

Da-Lite Tensioned Cosmopolitan Series, 65" x 104" with Da-Mat - 20882
Electric tensioned screen with Da-Mat surface, 65" x 104" dimensions, and 123" diagonal for front projection
The Da-Lite 20882 is a Tensioned Cosmopolitan Series electric screen designed for professional large venue front projection. This 65" x 104" (165.1 x 264.2 mm) screen features a 123" diagonal and is equipped with a Da-Mat surface for standard resolution projection. The unit utilizes Smooth Roll Technology to maintain a perfectly flat screen profile during operation. For optimal viewing smoothness, the screen incorporates the TruGuide™ Electric Screen Tensioning System. The housing is constructed as a single-piece steel case with integrated mounting holes in the end caps, which is standard for sizes up to 12’ wide. A standard black backing is included to help retain projected brightness on the front projection surface. This model operates on a standard 120V (60Hz) motor and is TAA compliant. This specific SKU is configured for ceiling or wall mounting applications and features a wide 16:10 screen format.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 134" x 13" x 10" (3403.6 x 330.2 x 254 mm) |
| Screen Diagonal | 123 in (312.4 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Weight | 102 lbs (46.3 kg) |
| Size | 65" x 104" or 123" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Single Motor Low Voltage Control System 120 Volt
40973$316.00
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Replacement Wall Switch Stainless Steel
92055$95.20
Da-Lite Replacement Wall Switch White (standard)
80575$71.20
Key Operated 110 Volt Switch
74490$116.00
Questions about this part
Will this Da-Lite 20882 screen work with my projector?
This is a front projection screen. It is designed to work with projectors using standard resolution projection on the Da-Mat surface.
What mounting options are available for the 20882?
This Cosmopolitan Series screen is designed for both ceiling and wall mounting applications.
What electrical requirements are needed for installation?
The screen utilizes a standard 120V (60Hz) motor and typically includes a Decora-style, three-position wall switch.
Does this screen include specialized control options?
While the standard unit includes a wall switch, accessories like the Da-Lite Single Motor Low Voltage Control System (SKU 40973) are available for advanced integration.
What is the difference between the Cosmopolitan and Contour series?
The Cosmopolitan series features a single-piece steel case for sizes up to 12' wide, whereas the Tensioned Contour is intended for different size ranges and surface options.
