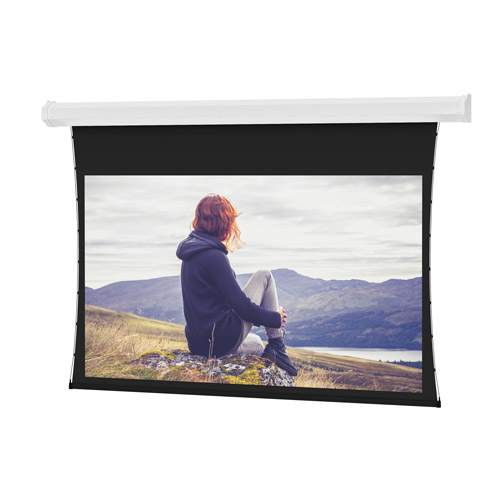

Da-Lite Tensioned Cosmopolitan Series, 57.5" x 92" with Da-Tex - 70206E
Electric tensioned screen for ceiling or wall mounting, featuring a Da-Tex surface and 109" diagonal
The Da-Lite 70206E is an electric tensioned screen from the Cosmopolitan Series, designed for large venue applications. This 109 in (276.9 cm) diagonal screen features a 57.5 in (146.1 cm) height and a wide 16:10 screen format. It is engineered for rear projection using a Da-Tex surface, which provides standard resolution performance. This specific model is equipped with a 220V (50Hz) motor intended for export markets. The housing is a single-piece steel case that includes integrated mounting holes in the end caps for this size. It features TruGuide™ Electric Screen Tensioning to maintain a smooth viewing surface and Smooth Roll Technology to keep the screen flat. This unit is TAA compliant and is manufactured in the US. The screen's standard black backing is used to retain projected brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 120" x 13" x 10" (3048 x 330.2 x 254 mm) |
| Screen Diagonal | 109 in (276.9 cm) |
| Screen Height | 57.5 in (146.1 cm) |
| Shipping Weight | 89 lbs (40.4 kg) |
| Size | 57.5" x 92" or 109" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Single Motor Low Voltage Control System 220 Volt
40973E$316.00
Da-Lite Replacement Wall Switch White 220V
80575E$71.20
Questions about this part
What mounting options are available for the 70206E?
This screen can be installed as a ceiling or wall mount. For this size, it features a single-piece steel case with integrated mounting holes in the end caps.
What type of projector is compatible with this screen?
The 70206E is designed for rear projection using a Da-Tex surface to provide standard resolution viewing.
What accessories are required for installation?
You can add a Da-Lite Ceiling Trim Kit (96382) or use Da-Lite Floating Mounting Brackets (77027 or 77028) depending on your installation requirements.
Does this model include a motor?
Yes, this SKU includes a 220V (50Hz) motor specifically for export applications.
Which document should I use for submittals?
You can refer to the Tensioned Cosmopolitan Specification Sheet (PDF) for technical details or the CAD Models for integration planning.
