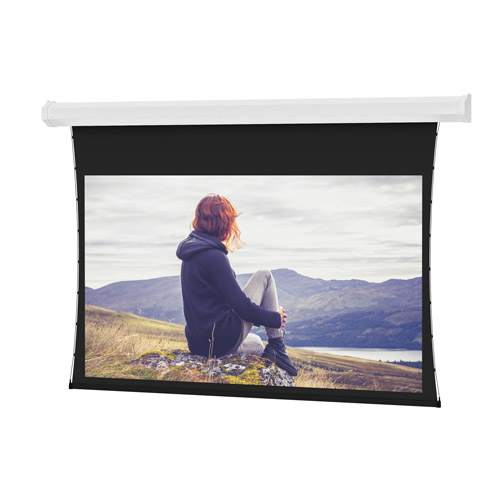

Da-Lite Tensioned Cosmopolitan Series, 50" x 80" with Da-Tex - 34480E
50" x 80" electric tensioned screen with Da-Tex rear projection surface and 220V motor
The Da-Lite 34480E is a Tensioned Cosmopolitan Series electric screen designed for professional rear projection applications. This 50" x 80" screen features a 94 in (238.8 cm) diagonal and is equipped with a Da-Tex surface for standard resolution viewing. Specifically configured for export, this unit utilizes a 220V (50Hz) motor to drive the electric screen operation. The Cosmopolitan Series utilizes Smooth Roll Technology and the TruGuide™ Electric Screen Tensioning System to ensure the viewing surface remains perfectly flat and smooth during use. This model features a single-piece steel case with integrated mounting holes in the end caps, facilitating both ceiling and wall mount installation options. The screen includes a standard black backing to help retain projected brightness on the front projection surface, and the entire housing features a standard white powder-coated finish. This TAA compliant product is built for large venue environments requiring reliable, high-quality projection surfaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 107" x 13" x 10" (2717.8 x 330.2 x 254 mm) |
| Screen Diagonal | 94 in (238.8 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Weight | 82.5 lbs (37.4 kg) |
| Size | 50" x 80" or 94" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Single Motor Low Voltage Control System 220 Volt
40973E$316.00
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Replacement Wall Switch White 220V
80575E$71.20
Questions about this part
Is this screen compatible with rear projection?
Yes, the 34480E is specifically designed for rear projection applications and features a Da-Tex surface with standard black backing to retain brightness.
What are the mounting options for the 34480E?
This Cosmopolitan Series screen can be installed in either a ceiling or wall mount configuration using the integrated mounting holes in the end caps.
What voltage does the motor require?
This specific model is configured with a 220V (50Hz) motor intended for export markets.
Can I add low voltage control to this screen?
Yes, the Da-Lite 34480E is compatible with the Da-Lite Single Motor Low Voltage Control System 220 Volt (SKU 40973E).
Which documentation should I use for submittals?
Installers can use the Tensioned Cosmopolitan Specification Sheet or the Tensioned Cosmopolitan Product Information Sheet for detailed submittal data.
