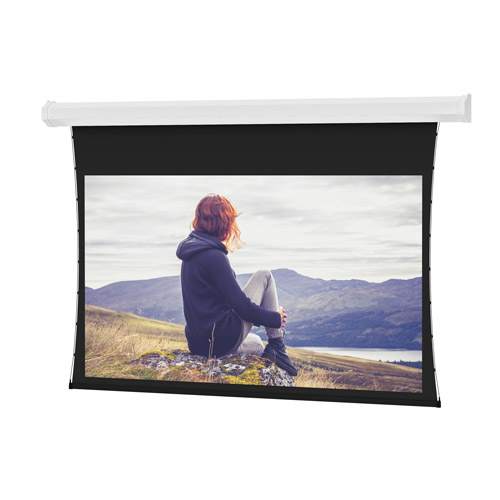

Da-Lite Tensioned Cosmopolitan Series, 50" x 80" with Da-Mat - 34472
94" diagonal electric projection screen featuring a Da-Mat surface, suitable for ceiling or wall mounting in large venue environments
The Da-Lite 34472 is a Tensioned Cosmopolitan Series electric projection screen designed for professional large venue applications. This 94" diagonal screen features a 50" x 80" wide 16:10 format and utilizes a Da-Mat surface optimized for front projection. The unit is engineered with Smooth Roll Technology and the TruGuide™ Electric Screen Tensioning System to ensure the projection surface remains perfectly flat during operation. This specific model arrives with a standard 120V (60Hz) motor and a standard white powder-coated housing finish. It is TAA compliant and suitable for both ceiling and wall mounting configurations. For installations requiring specific control, this series supports various electronic enhancements, including built-in low voltage control or a Video Projector Interface for screen triggering. The screen includes a standard black backing to help retain projected brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 107" x 13" x 10" (2717.8 x 330.2 x 254 mm) |
| Screen Diagonal | 94 in (238.8 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Weight | 82.5 lbs (37.4 kg) |
| Size | 50" x 80" or 94" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Single Motor Low Voltage Control System 120 Volt
40973$316.00
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Replacement Wall Switch Stainless Steel
92055$95.20
Da-Lite Replacement Wall Switch White (standard)
80575$71.20
Key Operated 110 Volt Switch
74490$116.00
Questions about this part
Will this Da-Lite 34472 screen fit my projection setup?
This screen is designed for front projection with a 16:10 wide aspect ratio and features a Da-Mat surface for high-quality image delivery.
Can I mount the 34472 on a wall or the ceiling?
Yes, this Tensioned Cosmopolitan Series screen is designed for both ceiling and wall mounting applications.
What electrical requirements does the motor have?
The screen is equipped with a standard 120V (60Hz) motor for easy integration into standard power systems.
What is the difference between the Cosmopolitan and other series?
The Cosmopolitan series features a single-piece steel case for sizes up to 12’ wide, whereas larger models in this series transition to a two-piece aluminum case.
Which documents are available for submittals?
Installers can access the Tensioned Cosmopolitan Specification Sheet, Instruction Manuals, or CAD and BIM models via the resources tab.
