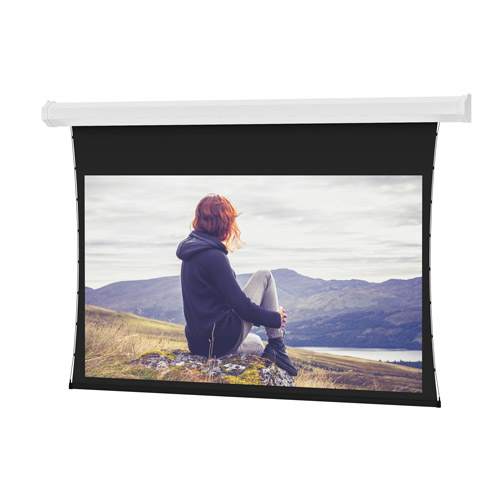

Da-Lite Tensioned Cosmopolitan Series, 45" x 80" with Da-Tex - 84995S
Electric tensioned rear projection screen, 45" x 80" with Da-Tex surface, suitable for ceiling or wall mounting
The Da-Lite 84995S is a Tensioned Cosmopolitan Series electric screen designed for rear projection applications. Featuring a 45" x 80" screen size and a 92 in (233.7 cm) diagonal, this model is equipped with a Da-Tex surface to provide optimal visual performance for large venue environments. The unit utilizes a silent 120V (60Hz) motor for smooth, quiet operation and incorporates Smooth Roll Technology to ensure the screen remains perfectly flat during use. It also features the TruGuide™ Electric Screen Tensioning System, which works to provide an optimal viewing surface smoothness. This model includes a standard black backing to help retain projected brightness on the front projection surface. The housing features a standard white powder-coated finish and is built with a single-piece steel case for durability. This TAA compliant screen can be installed using either ceiling or wall mounting configurations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 108" x 13" x 10" (2743.2 x 330.2 x 254 mm) |
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Weight | 84 lbs (38.1 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Silent 120V (60Hz) |
All other specifications 7
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Single Motor Low Voltage Control System 120 Volt
40973$316.00
Da-Lite Replacement Wall Switch Stainless Steel
92055$95.20
Da-Lite Replacement Wall Switch White (standard)
80575$71.20
Key Operated 110 Volt Switch
74490$116.00
Questions about this part
Will the Da-Lite 84995S work for rear projection?
Yes, this model is specifically designed for rear projection use and features a Da-Tex surface with black backing to retain projected brightness.
Can I mount the 84995S on a ceiling?
The Tensioned Cosmopolitan Series is versatile and can be installed in either ceiling or wall mount configurations.
What accessories are compatible with the 84995S?
You can add accessories such as the Da-Lite Ceiling Trim Kit (96382), Floating Mounting Brackets (77027 or 77028), or a Locking Switch Cover Plate (98837).
Does this screen include control options?
The 84995S comes with a Decora-style, three-position wall switch; additional options like a Single Motor Low Voltage Control System (40973) are available.
What is the total size of the 84995S unit?
The overall dimensions for this 45" x 80" screen are 108" x 13" x 10" (2743.2 x 330.2 x 254 mm).
