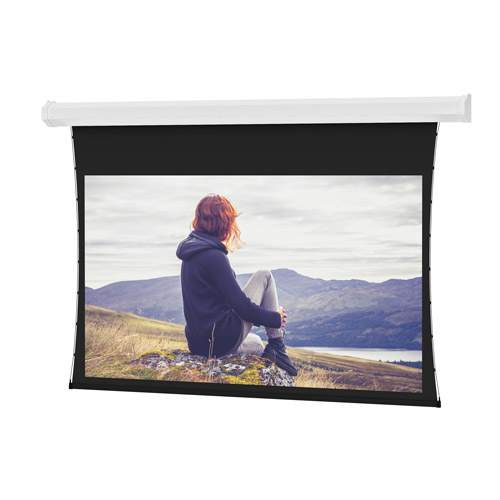

Da-Lite Tensioned Cosmopolitan Series, 45" x 80" with Da-Mat - 83448
Electric tensioned projection screen, 45" x 80" (92" diagonal) with Da-Mat surface for front projection
The Da-Lite 83448 is an electric, tensioned projection screen from the Cosmopolitan Series, designed for both ceiling and wall mounting applications. This 92" diagonal screen features a 45" x 80" aspect ratio with an HDTV 16:9 format, utilizing a Da-Mat surface designed for front projection. To ensure a perfectly flat viewing area, the unit employs Smooth Roll Technology combined with the TruGuide™ Electric Screen Tensioning System. The housing is a single-piece steel case that includes integrated mounting holes in the end caps for easier installation. This model operates on a standard 120V (60Hz) motor and features a black backing to maintain brightness on front projection surfaces. For users requiring specific control options, this series is compatible with various upgrades such as low voltage control, a Video Projector Interface (screen trigger), or a silent motor. This specific SKU is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 108" x 13" x 10" (2743.2 x 330.2 x 254 mm) |
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Weight | 84 lbs (38.1 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Locking Switch Cover Plate
98837$102.40
Da-Lite Single Motor Low Voltage Control System 120 Volt
40973$316.00
Da-Lite Replacement Wall Switch Stainless Steel
92055$95.20
Da-Lite Replacement Wall Switch White (standard)
80575$71.20
Key Operated 110 Volt Switch
74490$116.00
Questions about this part
Will this Da-Lite 83448 screen work with my front projection setup?
Yes, this model is specifically designed for front projection using a Da-Mat surface and features a black backing to maximize projected brightness.
What mounting options are available for the Cosmopolitan 83448?
This unit is designed for both ceiling and wall applications, utilizing a single-piece steel case with integrated mounting holes in the end caps.
Can I upgrade the control system for this screen?
Yes, the Cosmopolitan Series supports various electronics enhancements, including a single motor low voltage control system (part #40973) or a Video Projector Interface.
What is the difference between the 83448 and larger Cosmopolitan models?
The 83448 is a 45" x 80" model; for screens 188" Diagonal and over, Da-Lite offers two-piece aluminum cases and alternative surfaces like HD Progressive or Parallax.
Where can I find the technical submittals for this screen?
Technical documentation is available in the resources, including the Tensioned Cosmopolitan Specification Sheet and CAD/BIM models for system integration.
