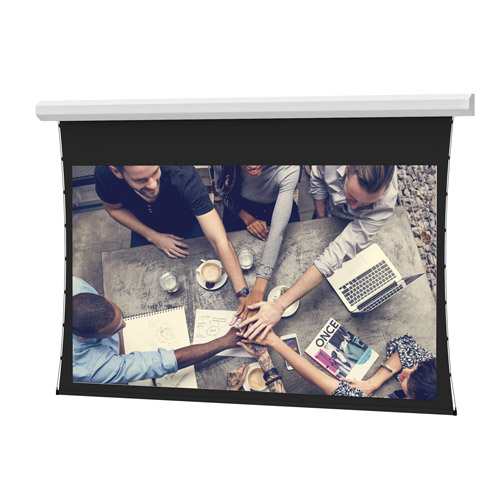

Da-Lite Tensioned Cosmopolitan Series, 120" x 192" with Parallax Stratos 1.0 - 29937
120" x 192" Tensioned Cosmopolitan electric screen with Parallax Stratos 1.0 ALR surface and 226" diagonal
The Da-Lite 29937 is a large venue electric projection screen designed for ceiling or wall mounting. This Tensioned Cosmopolitan Series model features a 120" x 192" screen size with a 226" diagonal. It is equipped with a Parallax Stratos 1.0 surface, which provides Ambient Light Rejecting (ALR) and high-resolution capabilities for front projection applications. The screen utilizes TruGuide™ Electric Screen Tensioning System technology to maintain an optimal, smooth viewing surface and features Smooth Roll Technology to ensure the screen remains perfectly flat during operation. Built with a single-piece steel case, this unit includes integrated mounting holes in the end caps for installation. The motor is a standard 120V (60Hz) model, and the screen comes with a standard white powder-coated housing finish. This TAA compliant product is designed for high-performance large venue environments where screen flatness and surface clarity are critical.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 226" x 13" x 20" (5740.4 x 330.2 x 508 mm) |
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Parallax Stratos 1.0 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen fit my 16:10 projection setup?
Yes, the 29937 features a Wide (16:10) screen format, making it suitable for high-resolution front projection in large venues.
What mounting options are available for the 29937?
This Tensioned Cosmopolitan Series screen is designed for both ceiling and wall applications using its integrated mounting holes.
What electrical requirements does the motor have?
The unit is equipped with a standard 120V (60Hz) motor for electric operation.
What accessories are compatible with this screen?
You can add specialized controls like the Da-Lite Single Motor Low Voltage Control System (SKU 40973) or a Da-Lite Locking Switch Cover Plate (SKU 98837).
Is this screen TAA compliant?
Yes, this model is TAA compliant and carries a US country of origin for federal operations.
