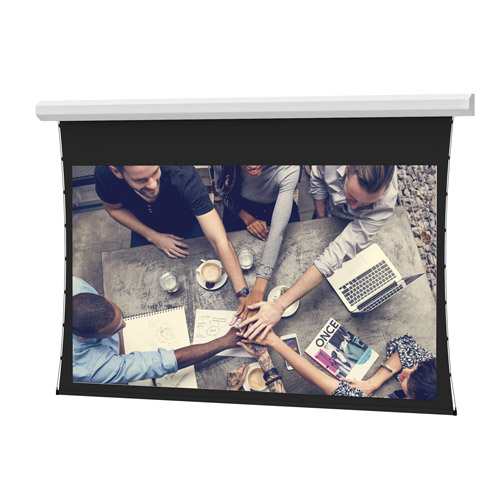

Da-Lite Tensioned Cosmopolitan Series, 120" x 192" with HD Progressive 1.3 - 24848E
Large venue tensioned projection screen, 120" x 192" (226" diagonal) with HD Progressive 1.3 surface
The Da-Lite 24848E is a Tensioned Cosmopolitan Series electric screen designed for large venue environments. This 120" x 192" (226" diagonal) screen features a wide 16:10 screen format and is equipped with the HD Progressive 1.3 surface, which provides high-resolution front projection performance. For optimal viewing surface smoothness, the unit utilizes the TruGuide™ Electric Screen Tensioning System alongside Smooth Roll Technology to ensure the screen remains perfectly flat during use. This specific model is configured with a 220V (50Hz) motor intended for export markets. The assembly features a single-piece steel case with integrated mounting holes in the end caps, making it suitable for both ceiling and wall mounting applications. For professional installations requiring specific controls, this screen is compatible with the Da-Lite Single Motor Low Voltage Control System 220 Volt (SKU 40973E). This product is TAA compliant and is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Dimensions | 226" x 13" x 20" (574 x 33 x 50.8 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| UPC | 717068370685 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 24848E fit my projection setup?
This screen is designed for front projection with a 16:10 wide aspect ratio and features an HD Progressive 1.3 surface for high-resolution imagery.
Can I control this screen with a low voltage system?
Yes, this model is compatible with the Da-Lite Single Motor Low Voltage Control System 220 Volt, part number 40973E.
Is this screen suitable for ceiling or wall mounting?
The 24848E is designed for both ceiling and wall applications, featuring a single-piece steel case with integrated mounting holes in the end caps.
What is the voltage requirement for this model?
This specific SKU is equipped with a 220V (50Hz) motor intended for export markets.
What documents are available for submittals?
Technical details can be found in the Tensioned Cosmopolitan Specification Sheet, the Instructions PDF, or the Tensioned Cosmopolitan Parts List.
