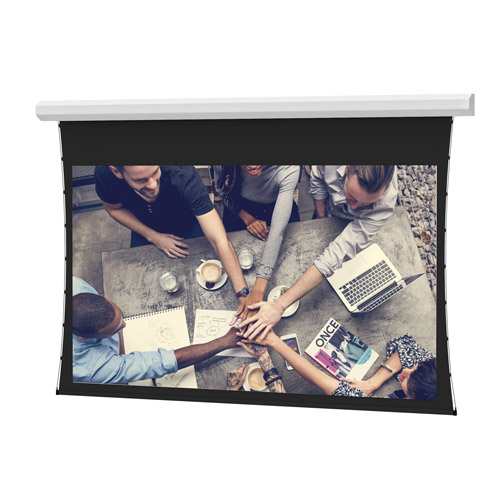

Da-Lite Tensioned Cosmopolitan Series, 120" x 192" with Da-Tex - 70277
120" x 192" tensioned rear projection screen with Da-Tex surface, 226" diagonal, for ceiling or wall mounting
The Da-Lite 70277 is a large-venue, electric tensioned screen from the Cosmopolitan Series, sized at 120" x 192" with a 226" diagonal. Designed for professional rear projection applications, this screen features the Da-Tex surface and a standard black backing to help maintain projected brightness. This SKU is part of a series that utilizes a single-piece steel case with integrated mounting holes in the end caps for sizes up to 12’ wide, allowing for versatile ceiling or wall installation. The screen employs Smooth Roll Technology to maintain a flat profile and the TruGuide™ Electric Screen Tensioning System to ensure an optimal, smooth viewing surface. This specific model operates on a standard 120V (60Hz) motor and is TAA compliant. Note that this product is scheduled to be discontinued on 10/30/26; installers should look to the DL100195L or DL100147L for direct replacement options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 226" x 13" x 20" (5740.4 x 330.2 x 508 mm) |
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
Questions about this part
What is the exact size of the 70277 screen?
The screen measures 120" x 192" with a 226" diagonal, providing a wide 16:10 screen format.
What mounting options are available for this model?
This series is designed for both ceiling and wall applications. For this 12' wide model, it features a single-piece steel case with integrated mounting holes in the end caps.
Is this screen compatible with rear projection?
Yes, the 70277 is specifically designed for rear projection and includes a standard black backing to retain projected brightness on the front surface.
What is the replacement part for the 70277 if it is discontinued?
As this product is scheduled for discontinuation on 10/30/26, the manufacturer recommends the DL100195L or DL100147L as direct replacement options.
What electrical requirements are needed for installation?
The screen uses a standard 120V (60Hz) motor and includes a Decora-style, three-position wall switch for operation.
