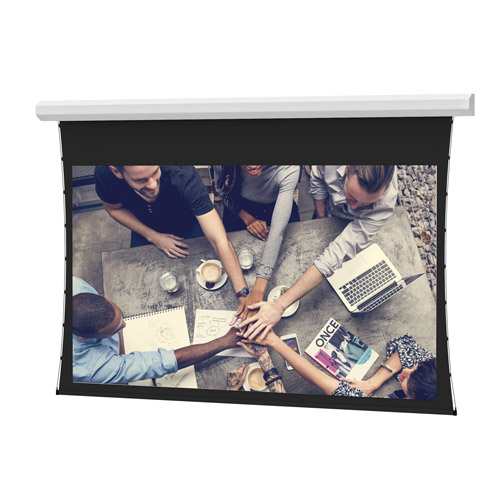

Da-Lite Tensioned Cosmopolitan Series, 120" x 192" with Da-Mat - 70272E
Large venue electric tensioned screen with 120" x 192" Da-Mat surface for ceiling or wall mounting
The Da-Lite 70272E is a large venue electric tensioned screen measuring 120" x 192" (226" diagonal). Designed for front projection, this Cosmopolitan Series screen features a Da-Mat surface providing standard resolution performance. This specific model is configured with a 220V (50Hz) motor for export markets. The unit utilizes the TruGuide™ Electric Screen Tensioning System to maintain an optimal, smooth viewing surface. For installation in large environments, it features a single-piece steel case with integrated mounting holes in the end caps, which is standard for widths up to 12 feet. The series utilizes Smooth Roll Technology to ensure the screen remains perfectly flat during use. This TAA compliant product features a standard black backing to retain brightness on front projection surfaces and comes with a white powder-coated housing finish. Note that this product is scheduled to be discontinued on 10/30/26, with DL100194EL and DL100146EL identified as direct replacement options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Dimensions | 226" x 13" x 20" (574 x 33 x 50.8 cm) |
| Shipping Weight | 496 lbs (225 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068814325 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What are the dimensions of the 70272E screen?
The 70272E is a 120" x 192" screen with a 226" diagonal measurement. It features a 16:10 wide screen format.
Is the 70272E TAA compliant?
Yes, this model is TAA compliant and is manufactured in the US.
What motor voltage does this export model use?
This specific SKU is equipped with a 220V (50Hz) motor designed for export markets.
How is the screen tensioned?
The 70272E uses the TruGuide™ Electric Screen Tensioning System to ensure a smooth, flat viewing surface.
What are the direct replacement options if this is discontinued?
Da-Lite has identified DL100194EL and DL100146EL as the direct replacement options for this series.
