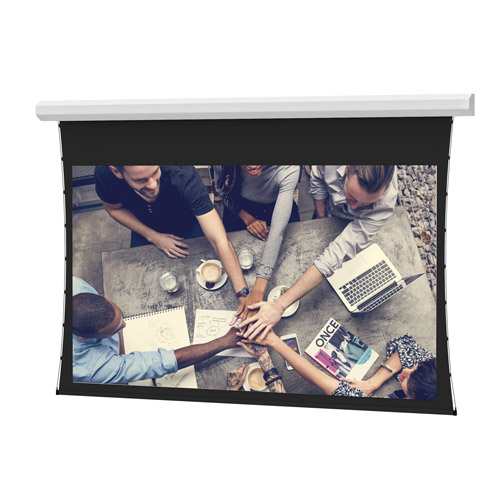

Da-Lite Tensioned Cosmopolitan Series, 120" x 160" with Da-Mat - 82430E
120" x 160" tensioned electric projection screen featuring a Da-Mat surface and 220V export motor for large venue applications
The Da-Lite 82430E is a Tensioned Cosmopolitan Series electric projection screen measuring 120" x 160" with a 200 in (508 cm) diagonal. Designed for large venue environments, this front projection screen features a Da-Mat surface and utilizes TruGuide™ Electric Screen Tensioning System technology to ensure optimal viewing surface smoothness. This specific SKU is equipped with a 220V (50Hz) motor intended for export markets. The housing features a single-piece steel case with integrated mounting holes in the end caps, as this model is 120" wide. The screen utilizes Smooth Roll Technology to maintain a perfectly flat surface and includes a standard black backing to retain projected brightness on the front projection surface. This TAA compliant product is suitable for both ceiling and wall mounting applications. Note that this product series is scheduled to be discontinued on 10/30/26; for newer installations, the Myriad Reveal series is the suggested alternative.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 200 in (508 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Dimensions | 194" x 13" x 20" (492.8 x 33 x 50.8 cm) |
| Shipping Weight | 416 lbs (188.7 kg) |
| Size | 120" x 160" or 200" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068523739 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the 82430E fit my projection setup?
The 82430E is a front projection screen with a 4:3 video format and a 200 in (508 cm) diagonal, utilizing a Da-Mat surface for standard resolution applications.
Can this screen be mounted on a ceiling or a wall?
Yes, the 82430E is designed for both ceiling and wall applications. Because this model is 120" wide, it utilizes a single-piece steel case with integrated mounting holes in the end caps.
What motor voltage does this specific SKU use?
This SKU (82430E) is configured with a 220V (50Hz) motor specifically for export use.
What accessories are compatible with this screen?
You can add a Da-Lite Locking Switch Cover Plate (SKU 98837) or a Da-Lite Single Motor Low Voltage Control System 220 Volt (SKU 40973E) to this unit.
What is the service life and replacement status of this series?
This product is scheduled for discontinuation on 10/30/26. Legrand suggests the Myriad Reveal series as a modern alternative with upgrades like SightLine Cable Drop.
