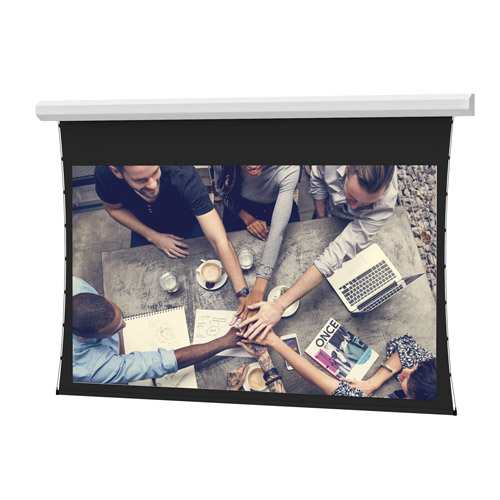

Da-Lite Tensioned Cosmopolitan Series, 120" x 160" with Da-Mat - 82430
Electric tensioned screen for large venues, 120" x 160" dimensions with Da-Mat surface and 200" diagonal
The Da-Lite 82430 is a large venue electric screen from the Tensioned Cosmopolitan Series, providing a 120" x 160" projection area with a 200" diagonal. This tensioned screen features a Da-Mat surface designed for front projection and includes a standard black backing to retain projected brightness. The assembly utilizes Smooth Roll Technology to maintain a perfectly flat screen surface, supported by the TruGuide™ Electric Screen Tensioning System for optimal smoothness. For installation, this unit can be ceiling or wall mounted and is housed in a single-piece steel case with integrated mounting holes in the end caps. It operates on a standard 120V (60Hz) motor and is TAA compliant. This specific SKU features the Da-Mat surface; for larger formats in the Cosmopolitan series, different surface options may be available.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 194" x 13" x 20" (4927.6 x 330.2 x 508 mm) |
| Screen Diagonal | 200 in (508 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Weight | 416 lbs (188.7 kg) |
| Size | 120" x 160" or 200" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 82430 fit my projection setup?
The 82430 is a front projection screen with a 4:3 video format and a Da-Mat surface, ideal for large venue applications.
What mounting options are available for the 82430?
This Cosmopolitan Series screen can be installed in either ceiling or wall mount configurations.
Is this screen TAA compliant?
Yes, the Da-Lite 82430 is TAA compliant and was manufactured in the US.
What accessories are available for controlling this screen?
You can add a Da-Lite Single Motor Low Voltage Control System (40973) or a Key Operated 110 Volt Switch (74490) for operation.
How do I handle submittals for this screen?
Architects and integrators can use the Tensioned Cosmopolitan CAD Models or BIM Files available in the Resources tab for project planning.
