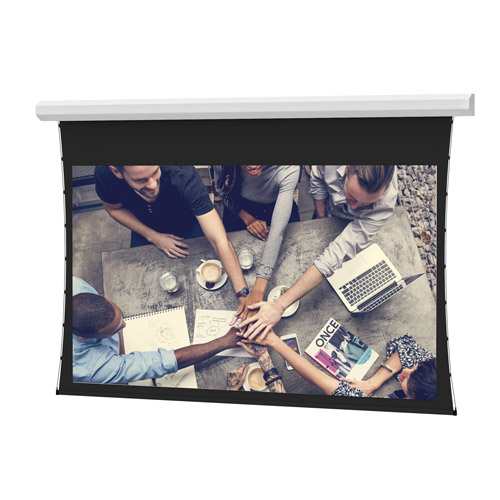

Da-Lite Tensioned Cosmopolitan Series, 110" x 176" with HD Progressive 1.3 - 24847
Large venue electric projection screen, 110" x 176" with HD Progressive 1.3 surface, for ceiling or wall mounting
The Da-Lite 24847 is a high-performance electric projection screen from the Tensioned Cosmopolitan Series, designed specifically for large venue environments. This 110" x 176" screen features an HD Progressive 1.3 surface, which provides high-resolution imagery for front projection applications. It utilizes Smooth Roll Technology to maintain a perfectly flat screen and incorporates the TruGuide™ Electric Screen Tensioning System to ensure an optimal, smooth viewing surface. For installation, this unit is designed for either ceiling or wall mounting. The housing is a single-piece steel case that includes integrated mounting holes in the end caps for sizes up to 12’ wide. This model operates on a standard 120V (60Hz) motor and features a standard white powder-coated finish. Please note that this specific SKU is scheduled to be discontinued on 10/30/26, with direct replacement options being DL100184L or DL100136L.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 209" x 13" x 20" (5308.6 x 330.2 x 508 mm) |
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Shipping Weight | 459 lbs (208.2 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What are the replacement options for the 24847 if it is discontinued?
The direct replacement options for this model are DL100184L or DL100136L.
Can this screen be mounted on a wall or a ceiling?
Yes, the 24847 is designed for both ceiling and wall applications.
What type of control is included with the 24847?
The screen includes a Decora-style, three-position wall switch for operation.
What mounting hardware is required for this screen?
For this size, the unit features a single-piece steel case with integrated mounting holes in the end caps.
What is the surface type for this specific SKU?
This model is equipped with an HD Progressive 1.3 surface designed for high-resolution front projection.
