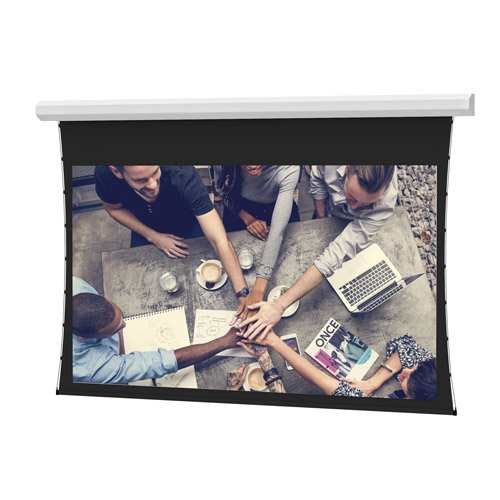

Da-Lite Tensioned Cosmopolitan Series, 110" x 176" with HD Progressive 1.0 - 21876E
Electric tensioned projector screen, 110" x 176" wide format with HD Progressive 1.0 surface for front projection
The Da-Lite 21876E is a large venue electric projection screen from the Tensioned Cosmopolitan Series, specifically designed for front projection applications. This 110" x 176" wide format screen provides a 208" diagonal viewing area and features the HD Progressive 1.0 high-resolution surface. It is designed for ceiling or wall mounting to provide a smooth, flat viewing area via the TruGuide™ Electric Screen Tensioning System. This specific model is equipped with a 220V (50Hz) motor for export use and is TAA compliant. The single-piece steel case construction includes integrated mounting holes in the end caps for efficient installation. To maintain high brightness for front projection, the housing includes a standard black backing. Note that this specific SKU is scheduled for discontinuation on 10/30/26, with DL100182EL or DL100134EL serving as the direct replacement options.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Shipping Dimensions | 209" x 13" x 20" (530.9 x 33 x 50.8 cm) |
| Shipping Weight | 459 lbs (208.2 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 717068998872 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the replacement for this discontinued screen?
The direct replacement options for the 21876E are model DL100182EL or DL100134EL.
What do I need to buy to control this screen's motor?
You can add the Da-Lite Single Motor Low Voltage Control System (SKU 40973E) for 220 Volt operation.
Can I use this screen for rear projection?
No, this model is designed specifically for Front Projection Type applications.
What is the mounting requirement for this series?
This screen features a single-piece steel case with integrated mounting holes in the end caps for ceiling or wall installation.
What control options are available for this model?
The series supports a Decora-style, three-position wall switch and can be configured with built-in low voltage control or a Video Projector Interface.
