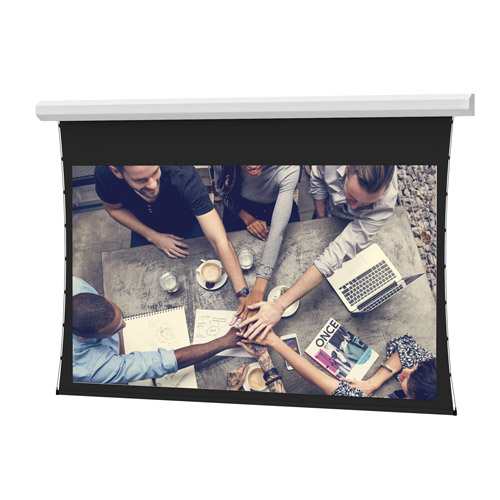

Da-Lite Tensioned Cosmopolitan Series, 108" x 192" with Da-Mat - 99287
Electric tensioned screen for large venue front projection, featuring a 108" x 192" Da-Mat surface and 220" diagonal
The Da-Lite 99287 is a large venue, electric tensioned screen designed for both ceiling and wall mounting. This 108" x 192" unit features a 220" diagonal and is paired with a Da-Mat surface designed for standard resolution front projection. The series utilizes TruGuide™ Electric Screen Tensioning System technology to ensure an optimal, smooth viewing surface, while Smooth Roll Technology is employed to maintain a perfectly flat screen. The housing is a single-piece steel case with integrated mounting holes in the end caps, as this model is up to 12’ wide. This TAA compliant screen includes a standard 120V (60Hz) motor and features a standard black backing to retain projected brightness. Note that this specific configuration will be discontinued on 10/30/26; installers seeking direct replacement options should look to part numbers DL100170L or DL100122L.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 224" x 13" x 20" (5689.6 x 330.2 x 508 mm) |
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Shipping Weight | 490 lbs (222.3 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 7
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the screen size and diagonal for part 99287?
This model features a 108" x 192" screen surface, which provides a 220" diagonal measurement.
Is this screen compatible with front projection?
Yes, the 99287 is a front projection screen that utilizes a Da-Mat surface and includes black backing to retain brightness.
How is this screen mounted on a wall or ceiling?
This unit features a single-piece steel case with integrated mounting holes in the end caps for ceiling or wall installation.
What are the replacement options for this model?
Because this SKU is scheduled for discontinuation on 10/30/26, Legrand recommends DL100170L or DL100122L as direct replacement options.
What motor and voltage does this screen use?
The 99287 is equipped with a standard 120V (60Hz) electric motor.
