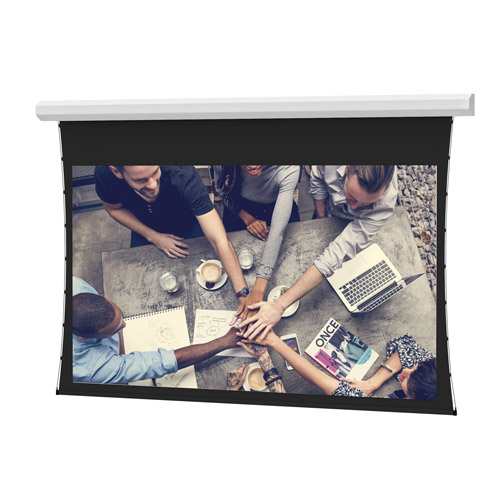

Da-Lite Tensioned Cosmopolitan Series, 100" x 160" with Parallax Stratos 1.0 - 29935E
100" x 160" (189" diagonal) tensioned electric screen featuring Parallax Stratos 1.0 ALR surface for front projection
The Da-Lite 29935E is a large venue, tensioned electric screen measuring 100" x 160" with a 189" diagonal. This unit is configured for export with a 220V (50Hz) motor and features the Parallax Stratos 1.0 surface, which provides Ambient Light Rejecting (ALR) and high-resolution capabilities for front projection applications. Designed for both ceiling and wall mounting, this series utilizes Smooth Roll Technology and the TruGuide™ Electric Screen Tensioning System to maintain an optimal, perfectly flat viewing surface. The screen utilizes a standard black backing to retain projected brightness. This specific TAA compliant model is part of the Cosmopolitan Series, which utilizes a single-piece steel case with integrated mounting holes in the end caps for this size. Note that this product is scheduled for discontinuation on 10/30/26; the direct replacement options are DL100172EL or DL100124EL.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Screen Height | 100 in (254 cm) |
| Shipping Dimensions | 191" x 13" x 20" (485.1 x 33 x 50.8 cm) |
| Shipping Weight | 406 lbs (184.2 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Parallax Stratos 1.0 |
| TAA Compliant | Yes |
| UPC | 717068680944 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Is the Da-Lite 29935E TAA compliant?
Yes, this model is TAA compliant and is manufactured in the US.
What is the surface type on the 29935E?
This screen features the Parallax Stratos 1.0 surface, which provides Ambient Light Rejecting (ALR) and high-resolution performance for front projection.
Can this screen be used for front projection?
Yes, it is specifically designed for front projection and includes a standard black backing to help retain projected brightness.
What mounting options are available for the 29935E?
This series is designed for both ceiling and wall mounting applications.
What is the replacement for the 29935E after it is discontinued?
Da-Lite has identified DL100172EL or DL100124EL as the direct replacement options for this model.
