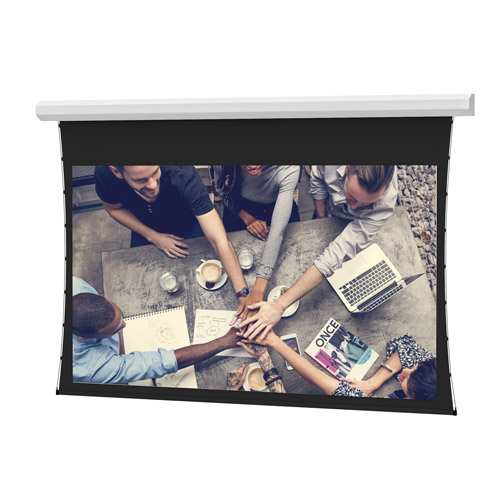

Da-Lite Tensioned Cosmopolitan Series, 100" x 160" with Da-Tex - 70263E
100" x 160" rear projection screen with Da-Tex surface, TruGuide™ tensioning, and 220V export motor
The Da-Lite 70263E is a large venue Tensioned Cosmopolitan Series electric screen designed for rear projection. Measuring 100" x 160" with a 189 in (480.1 cm) diagonal, this wide 16:10 format screen is intended for high-impact visual environments. This specific model features a Da-Tex surface designed for standard resolution and is equipped with a 220V (50Hz) motor for export markets. The assembly utilizes a single-piece steel case with integrated mounting holes in the end caps, a construction standard for widths up to 12 feet. To ensure a perfectly flat viewing area, the screen employs Smooth Roll Technology alongside the TruGuide™ Electric Screen Tensioning System. A standard black backing is used to maintain projected brightness on the front projection side. This TAA compliant unit is scheduled for discontinuation on 10/30/26; for newer iterations, consider the Myriad Reveal series or direct replacement parts DL100179EL and DL100131EL.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Overall Dimensions | 191" x 13" x 20" (4851.4 x 330.2 x 508 mm) |
| Screen Diagonal | 189 in (480.1 cm) |
| Screen Height | 100 in (254 cm) |
| Shipping Weight | 406 lbs (184.2 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 70263E work for rear projection?
Yes, this model is specifically configured for rear projection using a Da-Tex surface with a standard black backing to retain brightness.
What is the power requirement for the 70263E motor?
This unit is equipped with a 220V (50Hz) motor specifically designed for export applications.
What mounting options are available for this series?
This SKU features a single-piece steel case with integrated mounting holes in the end caps. Larger sizes 188" Diagonal and over utilize a two-piece aluminum case with mounting brackets.
What accessories are compatible with the Cosmopolitan Series?
You can add the Da-Lite 98837 Locking Switch Cover Plate or the Da-Lite 80575E Replacement Wall Switch (White, 220V) to your installation.
Is this screen TAA compliant?
Yes, this product is TAA compliant and manufactured in the US.
