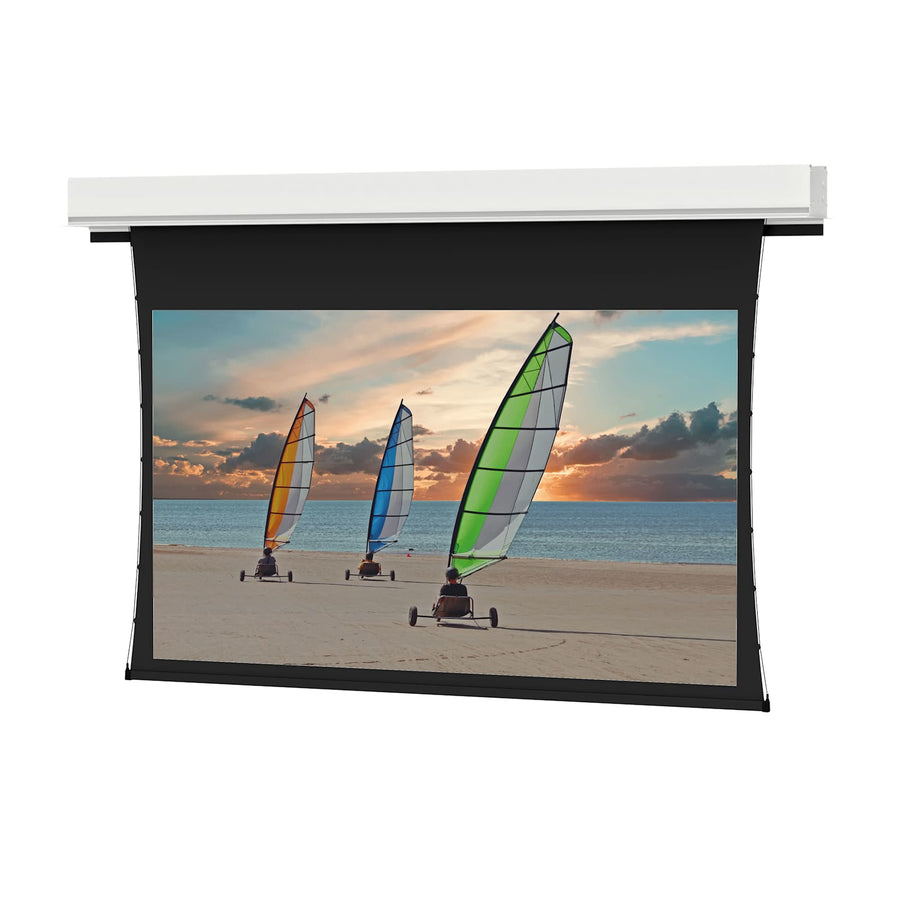

Da-Lite Tensioned Advantage Series, 72.5" x 116" with Da-Tex - 70086EF
72.5" x 116" (137" diagonal) rear projection screen with Da-Tex surface, featuring an automatic closure door for ceiling recessed installation
The Da-Lite 70086EF is a Tensioned Advantage Series electric screen designed for ceiling recessed applications. This specific model features a 72.5" x 116" dimension (137" diagonal) and is configured for rear projection using the Da-Tex surface. The unit is equipped with an automatic closure door and a standard black drop, which includes 12" of black border to maintain visual consistency. This SKU is provided as the surface, roller, and motor assembly only; the screen case/box must be ordered separately. For international deployments, this model utilizes a 220V (50Hz) motor. The series incorporates the TruGuide™ Electric Screen Tensioning System to ensure an optimal, smooth viewing surface. This TAA compliant assembly is part of a larger series that offers two-stage installation, allowing the case to be installed during rough-in construction and the surface assembly to be added during the finishing stage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 137 in (348 cm) |
| Screen Height | 72.5 in (184.2 cm) |
| Shipping Weight | 50 lbs (22.7 kg) |
| Size | 72.5" x 116" or 137" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Is the Da-Lite 70086EF compatible with rear projection?
Yes, this model is specifically designed for rear projection using the Da-Tex screen surface.
What is included in the 70086EF package?
This SKU includes the surface, roller, and motor assembly only; the housing case must be ordered separately.
What electrical requirements are needed for this screen motor?
The motor for this specific model is a 220V (50Hz) version intended for export.
What is the installation method for this series?
This is a ceiling recessed application that supports two-stage installation, allowing the case to be installed during rough-in and the assembly during finishing.
Does this screen require additional hardware for control?
The screen features built-in standard low voltage control, but you can also add accessories like the Da-Lite 40975 Low Voltage Wall Switch.
