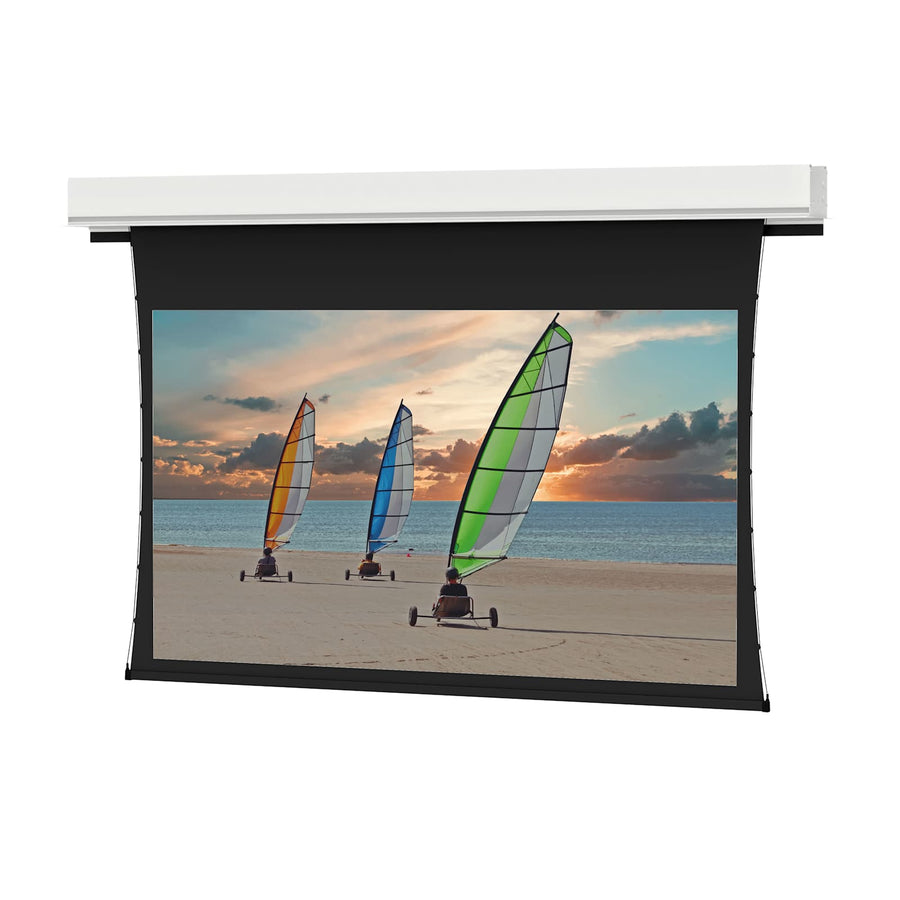

Da-Lite Tensioned Advantage Series, 50" x 80" with Parallax Stratos 1.0 - 29883E
Ceiling recessed electric screen, 50" x 80" wide format, featuring Parallax Stratos 1.0 ambient light rejecting surface
The Da-Lite 29883E is a 50" x 80" (94" diagonal) Tensioned Advantage Series ceiling recessed electric screen designed for high-performance front projection in large venue environments. This wide format (16:10) screen utilizes the Parallax Stratos 1.0 surface, which features Ambient Light Rejecting (ALR) and High Resolution capabilities to maintain image clarity in lit spaces. Built for professional installations, the 29883E features a white powder-coated case and a standard black drop. The assembly includes an automatic closure door and operates via standard low voltage control with a 220V (50Hz) motor for export applications. This model is TAA Compliant and manufactured in the US. The Tensioned Advantage Series utilizes the TruGuide™ Electric Screen Tensioning System to ensure a perfectly flat, smooth viewing surface, while Smooth Roll Technology maintains surface integrity during operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 94 in (238.8 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Dimensions | 112" x 13" x 10" (284.5 x 33 x 25.4 cm) |
| Shipping Weight | 137 lbs (62.1 kg) |
| Size | 50" x 80" or 94" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Parallax Stratos 1.0 |
| TAA Compliant | Yes |
| UPC | 717068485327 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 29883E work in a ceiling recessed installation?
Yes, this 50" x 80" screen is designed for ceiling recessed applications. It features a two-stage installation option, allowing the housing to be installed during rough-in and the surface assembly during finishing.
What is the benefit of the Parallax Stratos 1.0 surface on this screen?
The Parallax Stratos 1.0 surface provides Ambient Light Rejecting (ALR) and High Resolution features. This micro-layered lens system is optimized for front projection in large venue settings.
Does this screen include control options?
The 29883E includes standard low voltage control and is compatible with an optional Decora-style, three-button wall switch or other available control configurations.
What tools are required for installation?
The Tensioned Advantage Series requires various installation items; please refer to the Da-Lite Tensioned Advantage Series Instructions for the specific tool list required for your setup.
What is the difference between this and other Advantage Series screens?
This SKU specifically features the Parallax Stratos 1.0 surface and a 220V (50Hz) motor for export. It differs from standard vinyl surfaces in its optical performance and surface characteristics.
