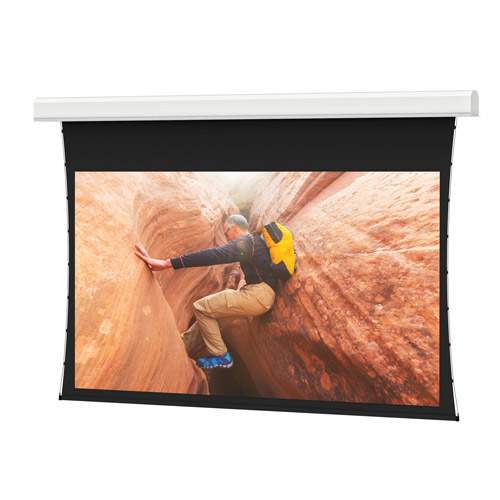

Da-Lite Tensioned Advantage Series, 150" x 240" with HD Progressive 1.0 - 14121EBL
Ceiling recessed electric projection screen, 150" x 240" with HD Progressive 1.0 surface and 220V motor for export use
The Da-Lite 14121EBL is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue applications. This 150" x 240" (283" diagonal) screen features an HD Progressive 1.0 surface optimized for front projection and a wide 16:10 screen format. Engineered for professional installation, this specific SKU is designated as a Case/Box Only for Rough-In, allowing installers to set the housing during the initial construction stage and complete the surface assembly during the finishing phase. The unit includes a white powder-coated case that is UL Plenum rated and utilizes a standard black drop to maintain projected brightness. It is equipped with a 220V (50Hz) motor specifically for export use. The TruGuide™ Electric Screen Tensioning System works alongside Smooth Roll Technology to ensure a perfectly flat, high-resolution viewing surface. For control, this model features standard low voltage control with a slot-style closure door.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 283 in (718.8 cm) |
| Screen Height | 150 in (381 cm) |
| Size | 150" x 240" or 283" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
Resources
You'll need these with it
Questions about this part
Will the 14121EBL fit my ceiling installation?
This is a ceiling recessed model designed for rough-in construction. The two-stage installation allows you to install the case during rough-in and the surface assembly during the finishing stage.
What is the control method for this Da-Lite screen?
The 14121EBL includes standard Low Voltage Control (LVC). You can also integrate it with a Da-Lite Low Voltage Wall Switch, such as part number 40975.
What kind of surface does this SKU feature?
This model is equipped with the HD Progressive 1.0 surface, which is optimized for high-resolution front projection in large venues.
Does this screen include a black border?
Yes, this specific SKU comes with a standard black drop, which helps retain projected brightness on front projection surfaces.
What electrical requirements are needed for the motor?
This unit is built with a 220V (50Hz) motor specifically intended for export use.
