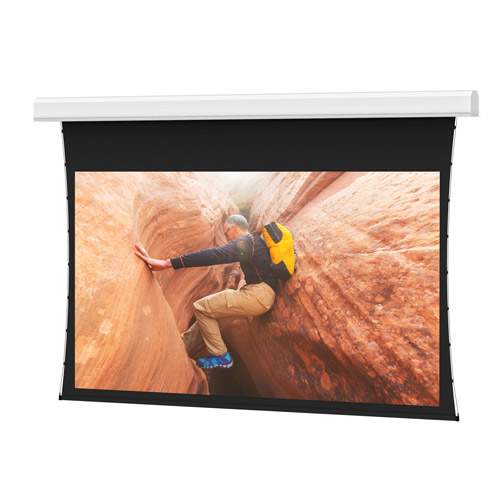

Da-Lite Tensioned Advantage Series, 150" x 240" with Da-Mat - 14124EBL
Ceiling recessed electric screen with Da-Mat surface, 220V (50Hz) motor, and 150" x 240" dimensions
The Da-Lite 14124EBL is a large venue, ceiling recessed electric screen designed for professional front projection environments. This 150" x 240" (283" diagonal) unit features a Wide 16:10 screen format and is equipped with a Da-Mat surface for standard resolution projection. Engineered for international use, this model includes a 220V (50Hz) motor. As a Case/Box Only for Rough-In selection, it is designed for two-stage installation: the white powder-coated, UL Plenum rated case can be installed during the rough-in construction stage, while the screen surface assembly is installed during the finishing stage. This series utilizes TruGuide™ Electric Screen Tensioning and Smooth Roll Technology to maintain a perfectly flat viewing surface. The system includes a standard black drop, a slot closure door, and standard low voltage control for flexible operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 283 in (718.8 cm) |
| Screen Height | 150 in (381 cm) |
| Size | 150" x 240" or 283" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
Resources
You'll need these with it
Questions about this part
The Tensioned Advantage series allows for two-stage installation, where the UL Plenum rated case is mounted during the rough-in stage and the screen surface is added during finishing.
The Tensioned Advantage series allows for two-stage installation, where the UL Plenum rated case is mounted during the rough-in stage and the screen surface is added during finishing.
Does the 14124EBL work with standard 60Hz power?
No, this specific SKU is configured with a 220V (50Hz) motor intended for export use.
What control options are available for this screen?
This model comes with Standard Low Voltage Control (LVC) and is compatible with Decora-style, three-button wall switches.
What accessories are needed for the control interface?
While it includes standard low voltage control, you can add a Da-Lite Low Voltage Wall Switch (SKU 40975) or a Locking Switch Cover Plate (SKU 98837).
What is the benefit of the TruGuide™ tensioning system?
The TruGuide™ system works with the single roller design to provide an optimal, smooth viewing surface for large-format projection.
