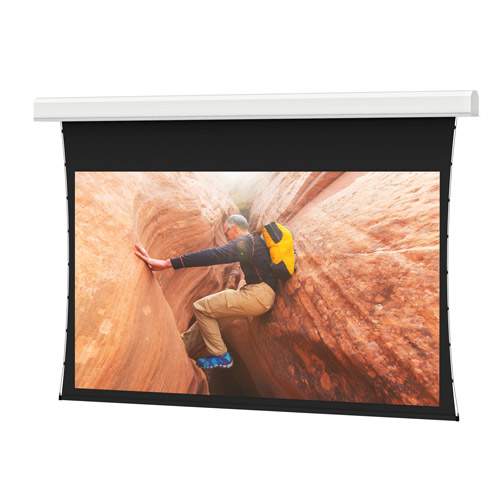

Da-Lite Tensioned Advantage Series, 146" x 260" with HD Progressive 1.0 - 21826EFL
Large venue ceiling recessed screen, 146" x 260" with HD Progressive 1.0 surface and 220V motor for export
The Da-Lite 21826EFL is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue environments. This 146" x 260" (298" diagonal) screen features an HD Progressive 1.0 high-resolution surface and is intended for front projection. Specifically configured for export, this unit includes a 220V (50Hz) motor and features standard black drop with 12" of black drop as standard. This SKU is provided as the surface, roller, and motor assembly only; the case and box must be ordered separately. Installation is streamlined through a two-stage process: the screen case can be installed during the rough-in construction phase, while the screen surface assembly is installed during the finishing stage. The white powder-coated, UL Plenum rated case is designed to be concealed with ceiling trim, eliminating the need for additional trim work. This TAA compliant system uses standard low voltage control and incorporates TruGuide™ Electric Screen Tensioning for an optimal viewing surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 298 in (756.9 cm) |
| Screen Height | 146 in (370.8 cm) |
| Shipping Weight | 302 lbs (137 kg) |
| Size | 146" x 260" or 298" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the exact size and diagonal of the 21826EFL?
This screen has a height of 146" (370.8 cm) and a width of 260", resulting in a 298" (756.9 cm) diagonal.
What motor voltage is used for this specific SKU?
This model is configured with a 220V (50Hz) motor intended for export use.
What is included in this product selection?
This SKU includes the surface, roller, and motor assembly only. The housing case and box are not included and must be ordered separately.
Does this screen require additional trim work after installation?
No, the Tensioned Advantage series is designed with ceiling trim in place to conceal the rough opening.
Which control systems are compatible with this screen?
It features standard low voltage control (LVC), and is compatible with accessories like the Da-Lite 40975 Low Voltage Wall Switch.
