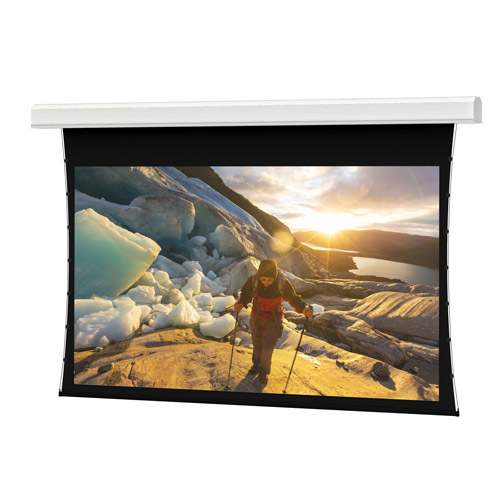

Da-Lite Tensioned Advantage Series, 144" x 192" with Da-Mat - 36887F
Ceiling recessed electric screen with Da-Mat surface, 144" x 192" dimensions, and automatic closure door
The Da-Lite 36887F is a Tensioned Advantage Series electric screen designed for ceiling recessed applications. This large venue projection screen features a 144" x 192" surface (240" diagonal) equipped with the Da-Mat screen surface for front projection. It is configured with a standard 120V (60Hz) motor and standard low voltage control. For a clean architectural finish, this unit includes an automatic closure door and utilizes a standard black drop. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology work together to maintain a perfectly flat viewing surface, while the standard black backing helps retain projected brightness. This TAA compliant assembly is designed for two-stage installation, allowing the screen case to be installed during the rough-in construction phase and the surface assembly to be added during the finishing stage. The white powder-coated, UL Plenum rated case is intended for recessed installation to conceal the rough opening with integrated ceiling trim.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 240 in (609.6 cm) |
| Screen Height | 144 in (365.8 cm) |
| Shipping Dimensions | 225" x 12" x 15" (571.5 x 30.5 x 38.1 cm) |
| Shipping Weight | 216 lbs (98 kg) |
| Size | 144" x 192" or 240" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068551329 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the installation requirement for the Da-Lite 36887F?
This is a ceiling recessed unit that requires a rough opening during construction. The two-stage installation allows the case to be set during rough-in, while the surface assembly is added during the finishing stage.
What controls are included with this screen?
The 36887F features standard low voltage control. For additional functionality, you can integrate a Da-Lite Low Voltage Wall Switch (SKU 40975) or use a Da-Lite Locking Switch Cover Plate (SKU 98837) for security.
Is the 36887F TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
What type of projection does the Da-Mat surface support?
The Da-Mat surface is designed specifically for front projection to ensure optimal image quality and brightness.
Does this screen come with the housing and case?
This specific SKU is for the Surface, Roller, and Motor Assembly only; the screen case must be ordered separately.
