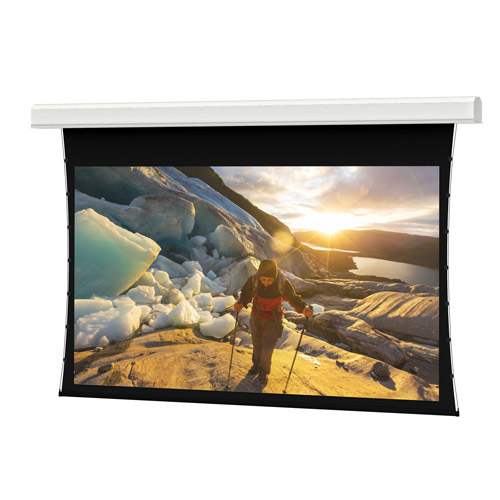

Da-Lite Tensioned Advantage Series, 144" x 192" with Da-Mat - 36887EF
Ceiling recessed electric projection screen, 144" x 192" (240" diagonal) with Da-Mat surface and automatic closure door
The Da-Lite 36887EF is a Tensioned Advantage Series ceiling recessed electric projection screen designed for large venue applications. This 144" x 192" (240" diagonal) screen features a Da-Mat surface and a standard black drop. It is specifically configured for front projection and utilizes a 220V (50Hz) motor intended for export. This unit is TAA compliant and manufactured in the US. The assembly includes a white powder-coated, UL Plenum rated case, providing a clean aesthetic for recessed installations. As a Product Selection entry, this includes the surface, roller, and motor assembly; the case and box must be ordered separately. The integrated automatic closure door and standard low voltage control provide streamlined operation. To maintain a perfectly flat viewing area, the screen utilizes TruGuide™ Electric Screen Tensioning and Smooth Roll Technology, ensuring the Da-Mat surface remains optimally flat during use.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 240 in (609.6 cm) |
| Screen Height | 144 in (365.8 cm) |
| Shipping Dimensions | 225" x 12" x 15" (571.5 x 30.5 x 38.1 cm) |
| Shipping Weight | 216 lbs (98 kg) |
| Size | 144" x 192" or 240" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068551312 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 36887EF screen fit my ceiling installation?
Yes, it is designed for ceiling recessed applications. The series features a two-stage installation option where the case can be installed during rough-in and the surface assembly during finishing.
What is included with the 36887EF and what must I order separately?
This SKU includes the surface, roller, and motor assembly. The case and box must be ordered separately to complete the installation.
Does the 36887EF require additional trim work after installation?
The Tensioned Advantage Series is designed with ceiling trim in place to conceal the rough opening, which eliminates the need for additional trim work once installed.
What control options are available for this electric screen?
It comes with Standard Low Voltage Control (LVC) and is compatible with optional controls such as the Da-Lite Low Voltage Wall Switch (40975).
Which documents do I need for a submittal or installation?
Installers can access the Tensioned Advantage Series Specification Sheet, CAD models, or BIM files through the product resources for technical planning.
