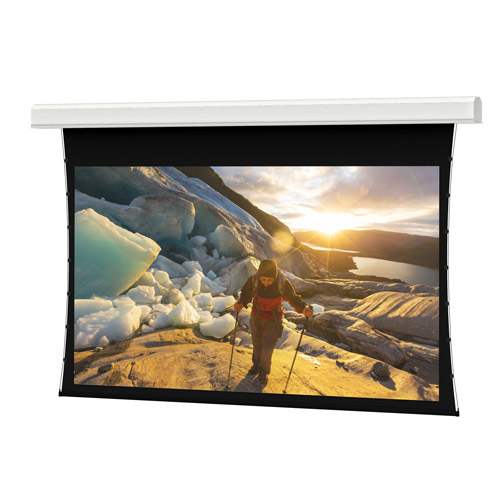

Da-Lite Tensioned Advantage Series, 144" x 192" with Da-Mat - 36887EB
Ceiling recessed electric projection screen, 144" x 192" (240" diagonal) with Da-Mat surface and automatic closure door
The Da-Lite 36887EB is a Tensioned Advantage Series electric projection screen designed for ceiling recessed applications. This 144" x 192" (240" diagonal) screen features a Da-Mat surface optimized for front projection and includes an automatic closure door. Built for large venue environments, the series utilizes a white powder-coated case and incorporates the TruGuide™ Electric Screen Tensioning System to maintain a smooth viewing surface. The assembly includes a standard black drop of 12" and a standard black backing to retain brightness. This specific model is configured with a 220V (50Hz) motor for export markets and features standard low voltage control. For installation, the two-stage design allows the case to be installed during the rough-in stage and the surface assembly during the finishing stage, while sliding installation brackets provide flexibility for mounting to structures above drop ceilings. This TAA compliant unit is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 240 in (609.6 cm) |
| Screen Height | 144 in (365.8 cm) |
| Shipping Dimensions | 232" x 18" x 23" (589.3 x 45.7 x 58.4 cm) |
| Shipping Weight | 598 lbs (271.3 kg) |
| Size | 144" x 192" or 240" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068551305 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the installation requirement for the Da-Lite 36887EB?
This is a ceiling recessed screen designed for a two-stage installation. You can install the case during the rough-in stage and the screen surface assembly during the finishing stage.
Does this screen include a way to control it?
The 36887EB comes with standard low voltage control and is compatible with optional controls like the Da-Lite 40975 Low Voltage Wall Switch.
What is the difference between this screen and the SightLine version?
This SKU features a standard black drop, whereas the SightLine version uses a cable drop system to create a floating screen appearance without a black border.
Is this screen TAA compliant?
Yes, the 36887EB is TAA compliant and was manufactured in the United States.
What kind of projection does the Da-Mat surface support?
The Da-Mat surface is designed for front projection and features standard black backing to help retain projected brightness.
