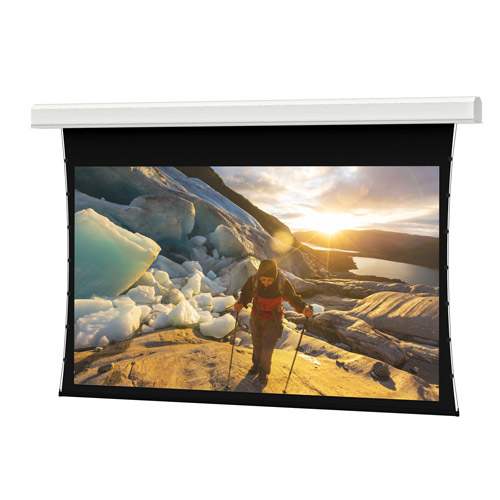

Da-Lite Tensioned Advantage Series, 144" x 192" with Da-Mat - 36887E
Ceiling recessed electric projection screen, 144" x 192" (240" diagonal) with Da-Mat surface and automatic closure door
The Da-Lite 36887E is a Tensioned Advantage Series ceiling recessed electric projection screen designed for large venue front projection applications. This complete screen solution features a 144" x 192" dimension (240" diagonal) and is equipped with a Da-Mat surface. For high-end architectural integration, the unit includes an automatic closure door and utilizes a standard black drop. It is engineered for a 4:3 video screen format and features a standard 220V (50Hz) motor designed for export markets. This TAA compliant series is designed with ceiling trim to conceal the rough opening, which eliminates the need for additional trim work after installation. The installation process offers two stages: the screen case can be installed during the rough-in construction stage, while the screen surface assembly is completed during the finishing stage. For specialized mounting, sliding installation brackets allow for flexible attachment to structures above a drop ceiling.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 240 in (609.6 cm) |
| Screen Height | 144 in (365.8 cm) |
| Shipping Weight | 733 lbs (332.5 kg) |
| Size | 144" x 192" or 240" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the installation requirement for the Da-Lite 36887E?
This is a ceiling recessed application. The series features two-stage installation, allowing the case to be installed during rough-in and the surface during the finishing stage.
Is the Da-Lite 36887E TAA compliant?
Yes, the 36887E is TAA compliant and is a complete screen selection.
What controls are compatible with this screen?
This model includes standard low voltage control and is compatible with accessories like the Da-Lite 40975 Low Voltage Wall Switch.
What kind of surface does this screen have?
The 36887E features the Da-Mat surface with standard resolution and a standard black drop to retain projected brightness.
What voltage does the motor use?
This specific SKU is equipped with a 220V (50Hz) motor intended for export use.
