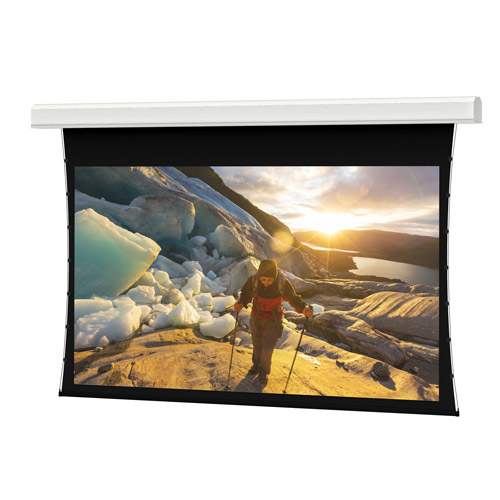

Da-Lite Tensioned Advantage Series, 135" x 240" with Parallax Stratos 1.0 - 29893F
Ceiling recessed electric screen, 135" x 240" size, featuring Parallax Stratos 1.0 Ambient Light Rejecting surface
The Da-Lite 29893F is a large venue, ceiling recessed electric screen designed for professional front projection applications. This 29893F unit features a 135" x 240" (698.5 x 342.9 cm) surface with a 275" (698.5 cm) diagonal. It is equipped with the Parallax Stratos 1.0 surface, which provides High Resolution and Ambient Light Rejecting (ALR) properties for optimized viewing in controlled lighting environments. This series is designed for two-stage installation; the white powder-coated case can be installed during the rough-in stage, while the screen surface assembly is finished later. The unit features a standard 120V (60Hz) motor and standard low voltage control, including a Decora-style, three-button wall switch for operation. This TAA compliant model utilizes a standard black drop and an automatic closure door. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology ensure the 16:9 HDTV format screen remains perfectly flat for high-quality projection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 275 in (698.5 cm) |
| Screen Height | 135 in (342.9 cm) |
| Shipping Dimensions | 281" x 12" x 15" (713.7 x 30.5 x 38.1 cm) |
| Shipping Weight | 277 lbs (125.7 kg) |
| Size | 135" x 240" or 275" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Parallax Stratos 1.0 |
| TAA Compliant | Yes |
| UPC | 717068486669 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the compatible surface for the Da-Lite 29893F?
This SKU is configured with the Parallax Stratos 1.0 surface, which features Ambient Light Rejecting (ALR) and High Resolution capabilities for front projection.
Does the 29893F require additional housing to be ordered?
This specific selection is for the Surface, Roller, and Motor Assembly Only; the case/box must be ordered separately.
What installation requirements are needed for this recessed screen?
This is a ceiling recessed model that supports two-stage installation, allowing the case to be installed during rough-in and the surface assembly during finishing.
Is the Da-Lite 29893F TAA compliant?
Yes, this product is TAA compliant and features a UL Plenum rated case.
What control options are available for the 29893F?
It includes standard low voltage control and comes with a Decora-style, three-button wall switch, with optional controls available for added flexibility.
