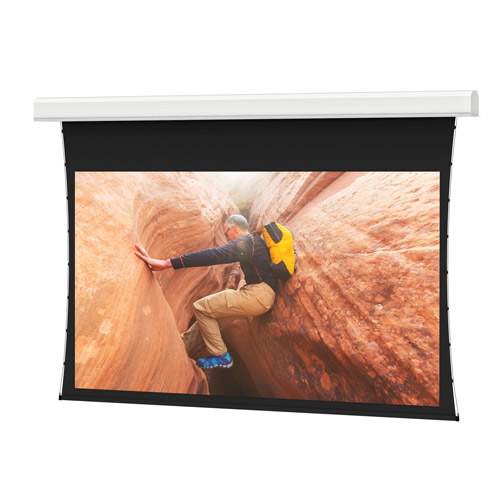

Da-Lite Tensioned Advantage Series, 135" x 240" with HD Progressive 1.3 - 24721BL
Tensioned ceiling recessed electric screen, 135" x 240", featuring HD Progressive 1.3 surface and standard low voltage control
The Da-Lite 24721BL is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue environments. Measuring 135" x 240" with a 275" diagonal, this front projection screen utilizes an HD Progressive 1.3 surface to ensure high-resolution imagery. The unit is designed for two-stage installation: the case can be installed during the rough-in construction stage, while the screen surface assembly is installed later during the finishing stage. This specific model is a case/box only for rough-in, meaning the housing is prepared to be concealed within the ceiling trim. The system features a standard 120V (60Hz) motor and standard low voltage control for flexible operation. It utilizes a standard black drop, which provides 12" of black border above the projection surface to maintain visual focus. The TruGuide™ Electric Screen Tensioning System works with Smooth Roll Technology and the TruGuide™ system to maintain an optimal, perfectly flat viewing surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 275 in (698.5 cm) |
| Screen Height | 135 in (342.9 cm) |
| Shipping Weight | 525 lbs (238.1 kg) |
| Size | 135" x 240" or 275" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 24721BL fit my ceiling configuration?
Yes, this is a Tensioned Advantage Series ceiling recessed screen. It features a two-stage installation process where the case is installed during rough-in and the surface is installed during finishing to hide the rough opening.
What is the screen size and aspect ratio for part number 24721BL?
This model features a 135" x 240" dimension with a 275" diagonal, presented in a 16:9 HDTV format.
What type of control is used with this electric screen?
The 24721BL comes with standard low voltage control (LVC) and a standard 120V (60Hz) motor.
Does this screen include the black drop border?
Yes, this SKU features a standard black drop, which provides 12" of black border above the projection surface.
What do I need to buy to complete the installation of the 24721BL?
This is the case/box only for rough-in. You may also require accessories such as the Da-Lite 40975 Low Voltage Wall Switch or the 98837 Locking Switch Cover Plate.
