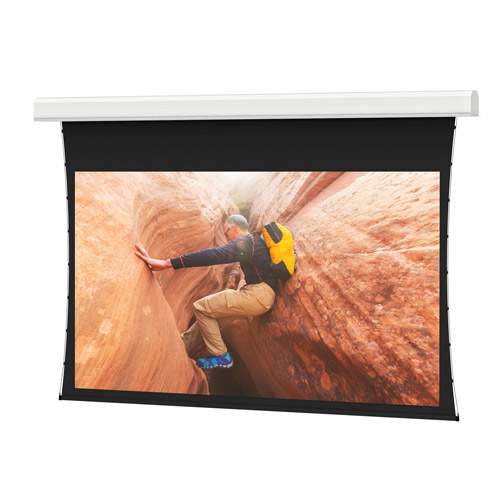

Da-Lite Tensioned Advantage Series, 135" x 240" with HD Progressive 1.1 Contrast - 37040EL
Ceiling recessed electric screen with HD Progressive 1.1 Contrast surface, 135" x 240" size, and TAA compliance
The Da-Lite 37040EL is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue front projection. This 135" x 240" screen features an HD Progressive 1.1 Contrast surface, specifically engineered to provide high-resolution imaging for large-scale environments. Because this is a ceiling recessed model, the unit is designed to be installed with the ceiling trim already in place, which conceals the rough opening and eliminates the need for additional trim work after installation. The two-stage installation process allows the screen case to be mounted during the rough-in construction phase, while the surface assembly is installed during the finishing stage. This unit features a standard black drop and standard low voltage control for flexible operation. The white powder-coated case maintains a clean aesthetic, while the TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology ensure the surface remains perfectly flat during use. This TAA compliant, US-made screen is built for high-performance professional AV environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 275 in (698.5 cm) |
| Screen Height | 135 in (342.9 cm) |
| Shipping Dimensions | 281" x 18" x 23" (713.7 x 45.7 x 58.4 cm) |
| Shipping Weight | 828 lbs (375.6 kg) |
| Size | 135" x 240" or 275" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 717068540361 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 37040EL fit my specific ceiling installation?
This is a ceiling recessed model designed to be installed with ceiling trim in place to hide the rough opening. It utilizes sliding installation brackets for flexible mounting to the structure above a drop ceiling.
What type of control is required for the 37040EL?
The 37040EL features standard low voltage control (LVC) and is compatible with the Da-Lite 40975 Low Voltage Wall Switch or the Da-Lite 98837 Locking Switch Cover Plate.
How does the surface finish affect the image quality?
The HD Progressive 1.1 Contrast surface is designed for high-resolution front projection. Unlike Parallax Pure surfaces which are optically flat, standard vinyl surfaces may exhibit slight waves, though the TruGuide™ tensioning system is designed to maintain smoothness.
Is this screen suitable for TAA compliant projects?
Yes, the 37040EL is TAA compliant and is manufactured in the US.
What motor voltage is used for this export model?
This specific SKU is equipped with a 220V (50Hz) motor designed for export use.
