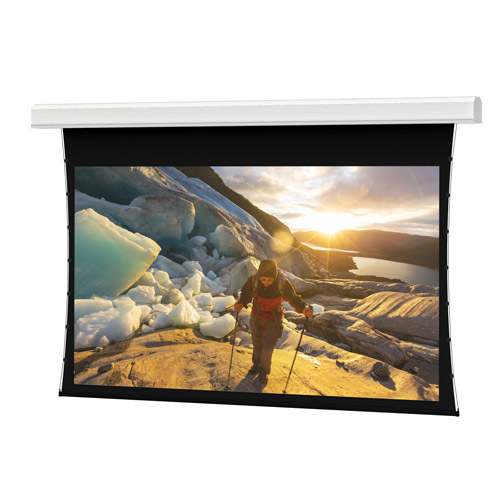

Da-Lite Tensioned Advantage Series, 135" x 240" with HD Progressive 1.0 - 21782E
Large venue ceiling recessed electric screen, 135" x 240" dimensions with HD Progressive 1.0 surface and automatic closure door
The Da-Lite 21782E is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue front projection applications. This 135" x 240" (275" diagonal) screen features an HD Progressive 1.0 surface designed for high-resolution imagery. The unit is engineered with an automatic closure door and a standard black drop, which provides 12" of black border at the top of the screen surface to maintain brightness during projection. For installation, the series supports a two-stage process: the white powder-coated, UL Plenum rated case can be installed during the rough-in stage, while the screen surface assembly is completed during the finishing stage. The housing utilizes sliding installation brackets to provide mounting flexibility for attachment to structures above a drop ceiling. This SKU is equipped with a 220V (50Hz) motor specifically for export markets and includes standard low voltage control. It is TAA compliant, making it suitable for federal projects requiring specific origin standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 275 in (698.5 cm) |
| Screen Height | 135 in (342.9 cm) |
| Shipping Weight | 866 lbs (392.8 kg) |
| Size | 135" x 240" or 275" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this 21782E screen fit my ceiling installation requirements?
Yes, this is a ceiling recessed model designed for installation during the rough-in stage. It features sliding installation brackets to allow for flexible mounting to the structure above a drop ceiling.
What motor voltage is required for the 21782E?
This specific SKU is equipped with a 220V (50Hz) motor intended for export use.
Does this screen include the control system?
The 21782E comes with standard low voltage control. You can also add accessories like the Da-Lite 40975 Low Voltage Wall Switch or a Da-Lite 98837 Locking Switch Cover Plate.
How much black border will be visible on the screen?
This model features a standard 12" black drop, which acts as a black border above the projection surface to help retain projected brightness.
Is the 21782E TAA compliant?
Yes, this product is TAA compliant and meets the necessary standards for federal operations.
