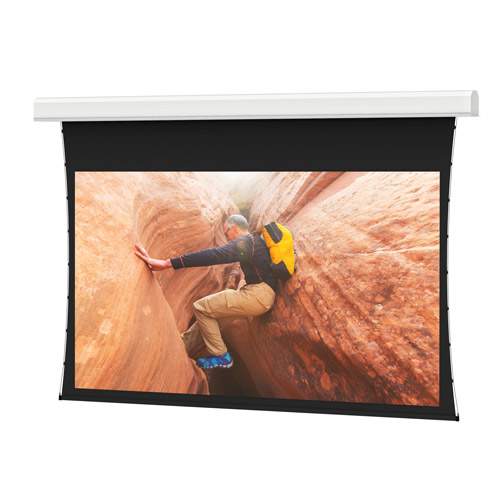

Da-Lite Tensioned Advantage Series, 135" x 240" with Da-Tex - 37041FL
135" x 240" ceiling recessed rear projection screen with Da-Tex surface and standard 120V motor
The Da-Lite 37041FL is a large-format Tensioned Advantage Series ceiling recessed electric screen designed for high-impact, large venue environments. This 135" x 240" (275 in (698.5 cm) diagonal) screen is engineered for rear projection applications using a Da-Tex surface. The assembly features a white powder-coated, UL Plenum rated case that is designed to be installed with ceiling trim in place, which conceals the rough opening and eliminates the need for additional trim work after installation. This SKU is the Surface, Roller, and Motor Assembly only; the case and box must be ordered separately. The system utilizes Smooth Roll Technology and the TruGuide™ Electric Screen Tensioning System to maintain an optimally flat and smooth viewing surface. It includes standard 120V (60Hz) motor control and standard low voltage control (LVC) for flexible integration. The screen features a standard black drop and a slot-style closure door. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 275 in (698.5 cm) |
| Screen Height | 135 in (342.9 cm) |
| Shipping Dimensions | 281" x 12" x 15" (713.7 x 30.5 x 38.1 cm) |
| Shipping Weight | 277 lbs (125.7 kg) |
| Size | 135" x 240" or 275" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068540804 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Is the Da-Lite 37041FL compatible with rear projection?
Yes, this 37041FL model is specifically designed for rear projection using a Da-Tex surface to ensure high-quality image delivery.
What is included with this 37041FL screen assembly?
This SKU is the Surface, Roller, and Motor Assembly only. The screen case and box must be ordered separately to complete the installation.
Does this screen require additional trim work after installation?
No, the Tensioned Advantage Series is designed with ceiling trim in place to conceal the rough opening, eliminating the need for additional trim work.
Is the Da-Lite 37041FL TAA compliant?
Yes, this product is TAA compliant and is manufactured in the United States.
What are the control options for the 37041FL motor?
The unit features a standard 120V (60Hz) motor with standard low voltage control (LVC) and offers various optional control configurations.
