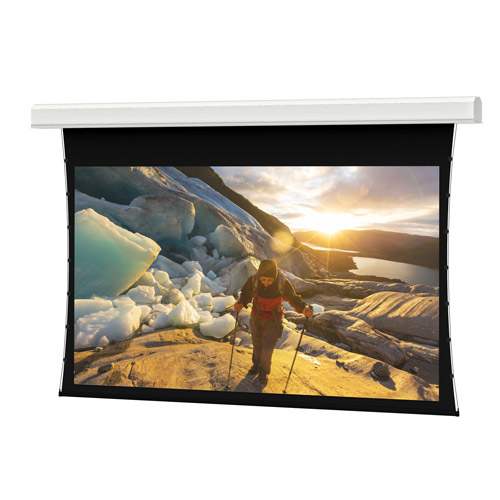

Da-Lite Tensioned Advantage Series, 135" x 216" with Parallax Stratos 1.0 - 14085EF
Large venue ceiling recessed electric screen, 135" x 216", featuring Parallax Stratos 1.0 ambient light rejecting surface
The Da-Lite 14085EF is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue front projection. This 135" x 216" (255" diagonal) wide format (16:10) screen features the Parallax Stratos 1.0 surface, which provides high resolution and ambient light rejecting (ALR) capabilities to maintain image clarity in lit environments. This specific SKU is a Surface, Roller, and Motor Assembly Only; the case or box must be ordered separately for a complete installation. The assembly utilizes Smooth Roll Technology and a TruGuide™ Electric Screen Tensioning System to ensure an optimal, perfectly flat viewing surface. It is designed for ceiling recessed application and includes an automatic closure door and standard black drop. This model is equipped with a 220V (50Hz) motor for export and comes with standard low voltage control for integrated operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 255 in (647.7 cm) |
| Screen Height | 135 in (342.9 cm) |
| Size | 135" x 216" or 255" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Parallax Stratos 1.0 |
Resources
You'll need these with it
Questions about this part
Will this screen work for front projection in a lit room?
Yes, the Parallax Stratos 1.0 surface features Ambient Light Rejecting (ALR) technology specifically designed to handle ambient light for high-resolution front projection.
Is the case included with the 14085EF?
No, this specific SKU (14085EF) is for the Surface, Roller, and Motor Assembly Only; the enclosure/case must be ordered separately.
What motor voltage is required for this model?
This model is configured with a 220V (50Hz) motor intended for export use.
What installation tools are required for the Tensioned Advantage series?
Installers should bring the tools listed in the Da-Lite Tensioned Advantage Series Instructions, such as a screwdriver or level, as required by the mounting site.
Does this screen feature a tensioning system?
Yes, it utilizes the TruGuide™ Electric Screen Tensioning System to maintain a smooth and flat surface for viewing.
