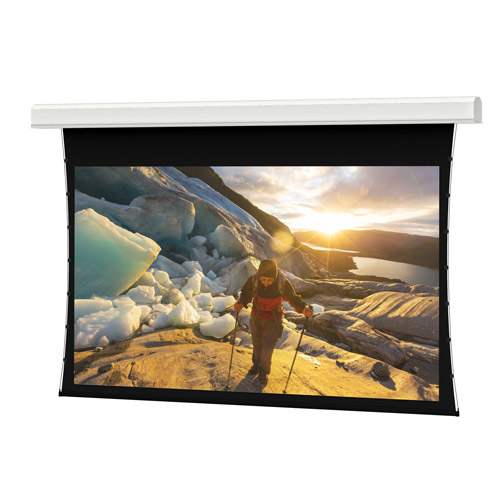

Da-Lite Tensioned Advantage Series, 135" x 216" with HD Progressive 1.0 - 14088EB
Recessed ceiling electric screen for large venues, 135" x 216" (255" diagonal) with HD Progressive 1.0 surface and 12" black drop
The Da-Lite 14088EB is a large venue, ceiling recessed electric screen designed for high-impact front projection environments. This 135" x 216" (255" diagonal) unit features a wide 16:10 screen format and utilizes the HD Progressive 1.0 surface for high-resolution imagery. Built for professional installations, the Tensioned Advantage Series utilizes TruGuide™ Electric Screen Tensioning to maintain an optimal, smooth viewing surface. This specific SKU is a case/box only for rough-in, intended for export with a 220V (50Hz) motor. The white powder-coated, UL Plenum rated case is designed to be installed during the construction rough-in stage, with the screen surface assembly installed later during the finishing stage. It features a standard black drop of 12", providing a clean border that helps retain projected brightness. For control, it includes standard low voltage control and an automatic closure door.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 255 in (647.7 cm) |
| Screen Height | 135 in (342.9 cm) |
| Size | 135" x 216" or 255" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
Resources
You'll need these with it
Questions about this part
Is this screen suitable for ceiling recessed installation?
Yes, this 14088EB model is designed for ceiling recessed applications, featuring a two-stage installation process where the case is installed during rough-in and the surface assembly during finishing.
What is the voltage requirement for the 14088EB motor?
This specific SKU is configured for export and operates on a 220V (50Hz) motor system.
Does this screen include the necessary controls?
The unit includes standard low voltage control and features a Decora-style, three-button wall switch, though additional accessories like the Da-Lite Low Voltage Wall Switch (SKU 40975) are available.
What is the vertical drop of the 14088EB screen?
This model features a standard 12" black drop, which helps retain projected brightness for front projection surfaces.
What documents are available for submittals or installation?
You can access the Tensioned Advantage Series Specification Sheet, Installation Instructions, or CAD/BIM models via the Resources tab for technical planning.
