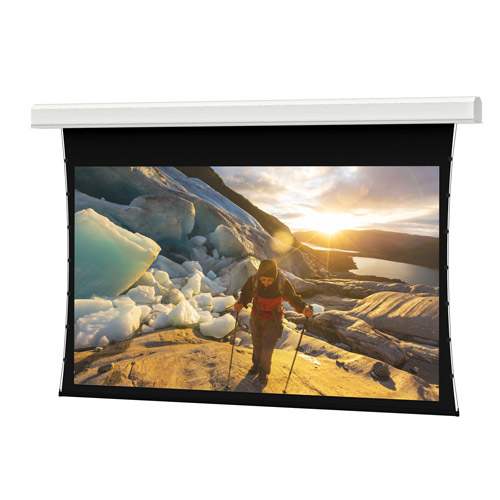

Da-Lite Tensioned Advantage Series, 132" x 176" with Da-Mat - 36880EF
Large venue ceiling recessed electric screen, 132" x 176" with Da-Mat surface and 220" diagonal
The Da-Lite 36880EF is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue front projection applications. This 132" x 176" (220" diagonal) screen utilizes a Da-Mat surface and features a standard black drop to maximize projected brightness on the front projection surface. Engineered for professional installations, this series is designed with ceiling trim in place to conceal the rough opening, eliminating the need for additional finishing work. The two-stage installation process allows the white powder-coated, UL Plenum rated case to be installed during the rough-in phase, while the screen surface assembly is mounted during the finishing stage. This model is a Surface, Roller, and Motor Assembly Only; the case and box must be ordered separately. It operates on 220V (50Hz) for export and includes an automatic closure door and standard low voltage control for versatile operation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 132 in (335.3 cm) |
| Size | 132" x 176" or 220" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
| Motor | 220V (50Hz) for Export |
All other specifications 7
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
Resources
You'll need these with it
Questions about this part
Will this screen fit my ceiling installation?
The 36880EF is designed for ceiling recessed applications. It includes sliding installation brackets to allow for mounting flexibility when attaching the housing to structures above a drop ceiling.
What is required to complete the installation of this screen?
This SKU is the Surface, Roller, and Motor Assembly Only. The case and box must be ordered separately to complete the assembly.
Is the 36880EF compatible with standard low voltage controls?
Yes, this model includes standard low voltage control (LVC). You can also use a Da-Lite Low Voltage Wall Switch, such as part 40975, for operation.
Does this screen include a protective door?
Yes, the 36880EF features an automatic closure door to protect the screen surface when not in use.
What voltage does this specific model use?
This is a 220V (50Hz) model designed for export applications.
