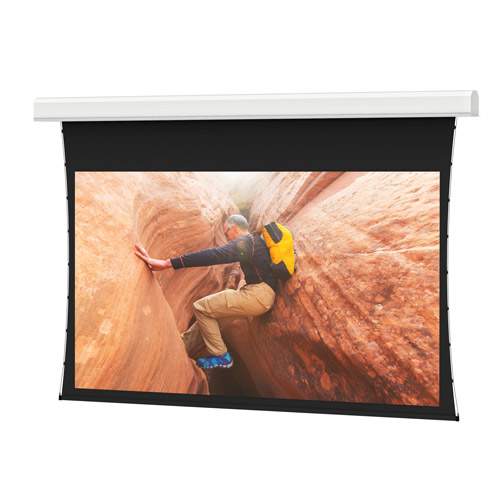

Da-Lite Tensioned Advantage Series, 121" x 216" with HD Progressive ReView 0.9 - 37035EFL
Ceiling recessed rear projection screen, 121" x 216", featuring HD Progressive ReView 0.9 surface and standard low voltage control
The Da-Lite 37035EFL is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue applications. This 121" x 216" (247" diagonal) projection surface is configured for rear projection and features the HD Progressive ReView 0.9 surface. To facilitate professional installation, this product is sold as the Surface, Roller, and Motor Assembly only; the case and box must be ordered separately. This specific model includes a standard black drop and is configured with a 220V (50Hz) motor intended for export markets. The system utilizes TruGuide™ Electric Screen Tensioning to ensure a smooth, optimal viewing surface, supported by Smooth Roll Technology to maintain a perfectly flat screen. This TAA-compliant assembly is built with a white powder-coated, UL Plenum rated case for clean aesthetics in professional environments. For control, it features standard low voltage control and is compatible with Decora-style, three-button wall switches.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 247 in (627.4 cm) |
| Screen Height | 121 in (307.3 cm) |
| Shipping Weight | 249 lbs (112.9 kg) |
| Size | 121" x 216" or 247" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Slot |
| Drop Type | Standard Black Drop |
All other specifications 10
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the specific surface type for the 37035EFL?
This SKU features the HD Progressive ReView 0.9 surface, which is specifically designed for high-resolution rear projection.
Does this screen include the mounting case?
No, this product is the Surface, Roller, and Motor Assembly only. You must order the case and box separately to complete the installation.
What voltage motor is included with this model?
This specific export version is equipped with a 220V (50Hz) motor.
What control options are compatible with this screen?
The 37035EFL features standard low voltage control and is compatible with Da-Lite accessories like the 40975 Low Voltage Wall Switch.
Is this product TAA compliant?
Yes, this model is TAA compliant and features a UL Plenum rated case.
