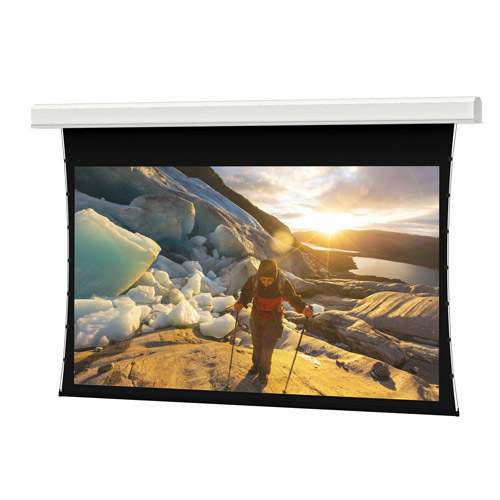

Da-Lite Tensioned Advantage Series, 121" x 216" with HD Progressive ReView 0.9 - 36914EF
Ceiling recessed rear projection screen, 121" x 216" (247" diagonal) with HD Progressive ReView 0.9 surface, featuring automatic closure door
The Da-Lite 36914EF is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue applications. This 121" x 216" (247" diagonal) screen utilizes an HD Progressive ReView 0.9 surface specifically for rear projection. The system features a standard black drop that provides 12" of coverage above the projection area. Because this is a Surface, Roller, and Motor Assembly Only, the case and box must be ordered separately. The unit is equipped with a 220V (50Hz) motor intended for export markets and includes standard low voltage control for flexible operation. For installation, this series offers a two-stage option: the case can be installed during rough-in construction, while the screen surface assembly is installed during the finishing stage. The white powder-coated case is UL Plenum rated, and the assembly includes an automatic closure door. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 247 in (627.4 cm) |
| Screen Height | 121 in (307.3 cm) |
| Shipping Weight | 249 lbs (112.9 kg) |
| Size | 121" x 216" or 247" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Is the Da-Lite 36914EF TAA compliant?
Yes, this SKU is TAA compliant and was manufactured in the US.
Does this screen include the mounting case?
No, this specific part number is for the Surface, Roller, and Motor Assembly Only; the case/box must be ordered separately.
What kind of projection is this screen for?
The 36914EF is designed for rear projection using an HD Progressive ReView 0.9 surface.
What type of control is used for this electric screen?
It features standard low voltage control (LVC) and includes a Decora-style, three-button wall switch.
How is the screen surface kept flat?
The screen utilizes the TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology to maintain a perfectly flat surface.
