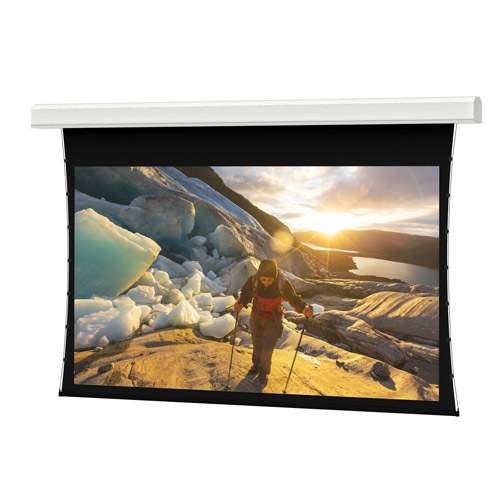

Da-Lite Tensioned Advantage Series, 121" x 216" with Da-Mat - 36908EF
Ceiling recessed electric screen with Da-Mat surface, 121" x 216" dimensions, and automatic closure door
The Da-Lite 36908EF is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue applications. This 121" x 216" (247" diagonal) screen features a Da-Mat surface optimized for front projection and includes a standard black drop. The unit is built with a white powder-coated, UL plenum rated case to maintain a clean aesthetic while meeting safety requirements. This specific SKU is a Surface, Roller, and Motor Assembly only; the case or box must be ordered separately for a complete installation. This model is designed for ceiling recessed applications, allowing the screen case to be installed during the rough-in construction stage. The two-stage installation process enables the screen surface assembly to be added later during the finishing stage. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology work together to maintain an optimal, perfectly flat viewing surface. For control, this unit features standard low voltage control (LVC) and is TAA compliant. The automatic closure door ensures the screen remains protected when not in use.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 247 in (627.4 cm) |
| Screen Height | 121 in (307.3 cm) |
| Shipping Weight | 231 lbs (104.8 kg) |
| Size | 121" x 216" or 247" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is required to complete the installation of the 36908EF?
This SKU is the Surface, Roller, and Motor Assembly only. The case or box must be ordered separately to complete the installation.
How does the tensioning system work on this Da-Lite screen?
The unit utilizes the TruGuide™ Electric Screen Tensioning System to ensure a smooth, optimal viewing surface for front projection.
Can I control the 36908EF screen with a wall switch?
Yes, this model includes standard low voltage control (LVC) for operation flexibility and is compatible with Decora-style, three-button wall switches.
Is this screen suitable for plenum spaces?
Yes, the white powder-coated case is UL plenum rated, making it suitable for ceiling recessed applications in plenum environments.
What is the difference between the 36908EF and the Parallax Pure surface?
While this model features the Da-Mat surface with a 12" standard black drop, Parallax Pure surfaces have a 2" standard drop and a unique micro-layered lens system.
