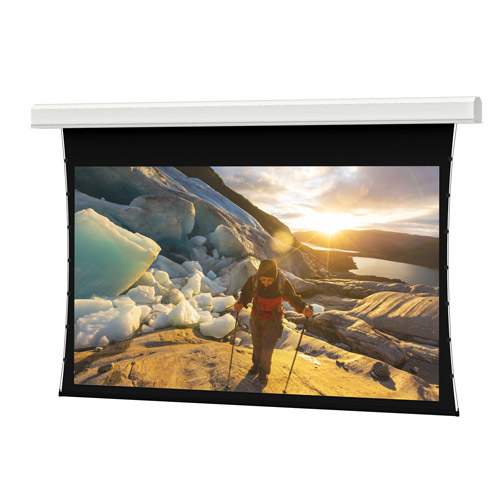

Da-Lite Tensioned Advantage Series, 121" x 216" with Da-Mat - 36908B
Ceiling recessed electric screen with Da-Mat surface, measuring 121" x 216" for large venue front projection
The Da-Lite 36908B is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue front projection applications. Measuring 121" x 216" with a 247 in (627.4 cm) diagonal, this screen features a Da-Mat surface and a standard black drop. This model is designed for two-stage installation, allowing the screen case to be installed during the rough-in construction stage and the screen surface assembly to be completed during the finishing stage. The white powder-coated case is designed to be installed with ceiling trim in place, which helps conceal the rough opening. This 36908B unit includes a standard 120V (60Hz) motor and standard low voltage control, with an automatic closure door. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology work together to maintain a perfectly flat, even viewing surface. This TAA compliant product is manufactured in the US and is suitable for professional installation in high-end large venue environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 247 in (627.4 cm) |
| Screen Height | 121 in (307.3 cm) |
| Shipping Weight | 673 lbs (305.3 kg) |
| Size | 121" x 216" or 247" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Case/Box Only for Rough-In |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 36908B fit my ceiling configuration?
This is a ceiling recessed model designed to be installed with the ceiling trim in place to conceal the rough opening. It features sliding installation brackets for flexible mounting to the structure above a drop ceiling.
What do I need for the installation of the 36908B?
The unit includes a standard 120V (60Hz) motor and standard low voltage control. For complete submittal requirements, you can refer to the Tensioned Advantage Series Specification Sheet.
What is the difference between the standard drop and the SightLine option?
The 36908B comes standard with a 12" black drop. This differs from the SightLine feature, which uses a suspension system to eliminate the black border entirely for a floating screen effect.
Is this screen suitable for high-end professional venues?
Yes, the 36908B is categorized for Large Venue use and features the Smooth Roll Technology and TruGuide™ Tensioning System to ensure a flat, professional viewing surface.
What accessories are compatible with this screen?
You can add a Da-Lite Low Voltage Wall Switch (part 40975) or a Da-Lite Locking Switch Cover Plate (part 98837) for enhanced control and security.
