Da-Lite Tensioned Advantage Series, 120" x 192" with Parallax Stratos 1.0 - 29896
Ceiling recessed electric screen, 120" x 192" dimensions, with Parallax Stratos 1.0 ambient light rejecting surface

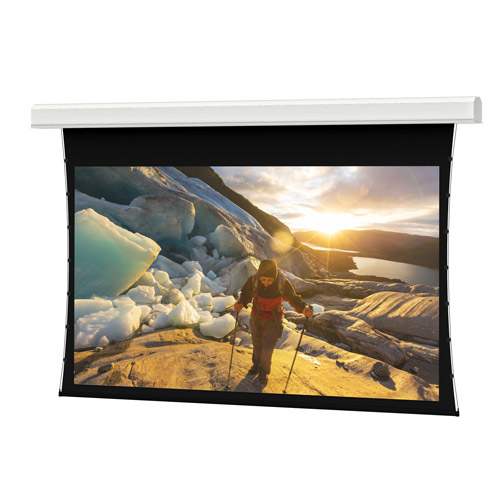

The Da-Lite 29896 is a Tensioned Advantage Series ceiling recessed electric screen designed for large venue front projection. Measuring 120" x 192" with a 226 in (574 cm) diagonal, this complete screen features the Parallax Stratos 1.0 surface, which offers high resolution and ambient light rejecting (ALR) properties to maintain image clarity in lit environments. The motorized system operates on standard 120V (60Hz) power and includes standard low voltage control for flexible integration into existing AV systems. For a clean architectural finish, the white powder-coated case is designed for ceiling recessed installation, allowing the trim to conceal the rough opening. This TAA compliant solution utilizes the TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology to maintain an exceptionally flat projection surface. The screen includes an automatic closure door and a standard black drop to assist in maintaining projected brightness on the front projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Weight | 754 lbs (342 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Parallax Stratos 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the required installation type for the Da-Lite 29896?
This model is designed for ceiling recessed application, utilizing a two-stage installation process where the case is installed during rough-in and the surface assembly is completed during finishing.
Is the Da-Lite 29896 TAA compliant?
Yes, this screen is TAA compliant, making it suitable for projects requiring adherence to Trade Agreements Act standards.
What type of projection surface does this screen have?
The 29896 features a Parallax Stratos 1.0 surface, which is a high-resolution, ambient light rejecting (ALR) material specifically designed for front projection.
How is the screen controlled?
It comes with standard low voltage control (LVC) built-in, allowing for flexible integration with various control systems.
What do I need for the submittal process?
You can find the Tensioned Advantage Series Specification Sheet and BIM models in the Resources tab to assist with your submittals and CAD documentation.
