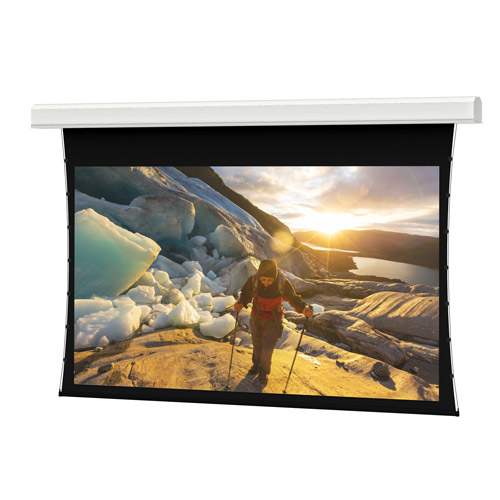

Da-Lite Tensioned Advantage Series, 120" x 192" with Da-Tex - 70238
Ceiling recessed rear projection screen, 120" x 192" (226" diagonal) with Da-Tex surface and automatic closure door
The Da-Lite 70238 is a ceiling recessed electric screen designed for large venue applications. This 120" x 192" (226" diagonal) unit features a Da-Tex surface optimized for rear projection. Built for professional installation, the Tensioned Advantage Series is engineered to sit with ceiling trim in place, concealing the rough opening to eliminate the need for additional trim work after installation. This model includes an automatic closure door to protect the screen surface when not in use. The system utilizes TruGuide™ electric screen tensioning and Smooth Roll Technology to maintain an optimal, flat viewing surface. This SKU is a complete screen assembly featuring standard 120V (60Hz) motor operation and standard low voltage control. For specialized control environments, the Da-Lite 40975 Low Voltage Wall Switch is compatible with this series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Weight | 754 lbs (342 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
| Drop Type | Standard Black Drop |
All other specifications 11
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Complete Screen |
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Is this screen compatible with rear projection setups?
Yes, the 70238 is specifically configured for rear projection using a Da-Tex surface.
What mounting requirements are needed for the Tensioned Advantage series?
This series is designed for ceiling recessed installation. It features sliding installation brackets that allow for flexible mounting to the structure above a drop ceiling.
How is the screen controlled and what is the drop style?
The screen features standard 120V (60Hz) motor operation with standard low voltage control and a standard black drop.
What accessories are available for controlling this screen?
You can use the Da-Lite 40975 Low Voltage Wall Switch or the Da-Lite 98837 Locking Switch Cover Plate for controlled operation.
Does this screen meet TAA compliance requirements?
Yes, this product is TAA compliant and features a US country of origin.
