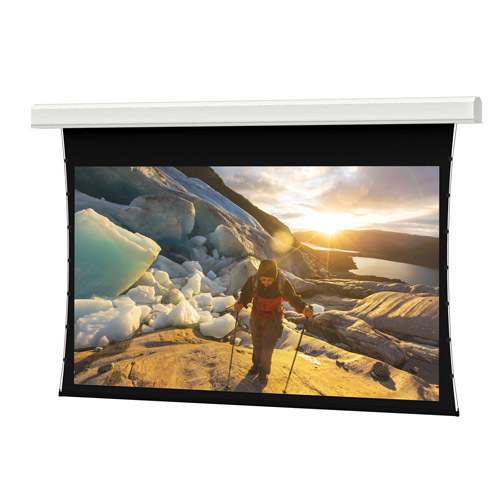

Da-Lite Tensioned Advantage Series, 110" x 176" with HD Progressive 1.3 - 24868EF
Ceiling recessed electric projection screen for large venues, featuring 110" x 176" dimensions and HD Progressive 1.3 surface
The Da-Lite 24868EF is a Tensioned Advantage Series electric projection screen designed for ceiling recessed applications in large venue environments. This unit features a 110" x 176" projection area with a 16:10 wide format, utilizing an HD Progressive 1.3 surface to provide high-resolution front projection performance. This specific SKU is configured with a 220V (50Hz) motor for export markets and includes an automatic closure door to protect the screen when not in use. The assembly is provided as the surface, roller, and motor assembly only; the case and box must be ordered separately to complete the installation. This TAA compliant solution utilizes TruGuide™ electric screen tensioning and Smooth Roll Technology to maintain a perfectly flat viewing surface. The white powder-coated case is UL Plenum rated, and the standard black drop provides a clean aesthetic for professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Shipping Dimensions | 216" x 18" x 23" (548.6 x 45.7 x 58.4 cm) |
| Shipping Weight | 271 lbs (122.9 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Ceiling Recessed |
| Built-In Control | Standard Low Voltage Control |
| Closure Door | Automatic Closure Door |
All other specifications 13
| Drop Type | Standard Black Drop |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Product Selection | Surface, Roller, and Motor Assembly Only (for case/box ordered separately) |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| UPC | 717068373419 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the exact projection size for the Da-Lite 24868EF?
This model provides a 110" x 176" projection area, which corresponds to a 208" screen diagonal in a 16:10 wide aspect ratio.
Does this screen include the housing case?
No, this specific SKU is the Surface, Roller, and Motor Assembly only. The screen case must be ordered separately.
What motor voltage is required for this model?
The 24868EF is equipped with a 220V (50Hz) motor specifically designed for export applications.
What do I need to do for a submittal or installation guide?
You can access the Tensioned Advantage Series Specification Sheet or the Installation Instructions PDF in the Resources tab for detailed technical data.
Can I use this in a ceiling recessed installation?
Yes, this screen is specifically designed for ceiling recessed applications and is UL Plenum rated for such environments.
